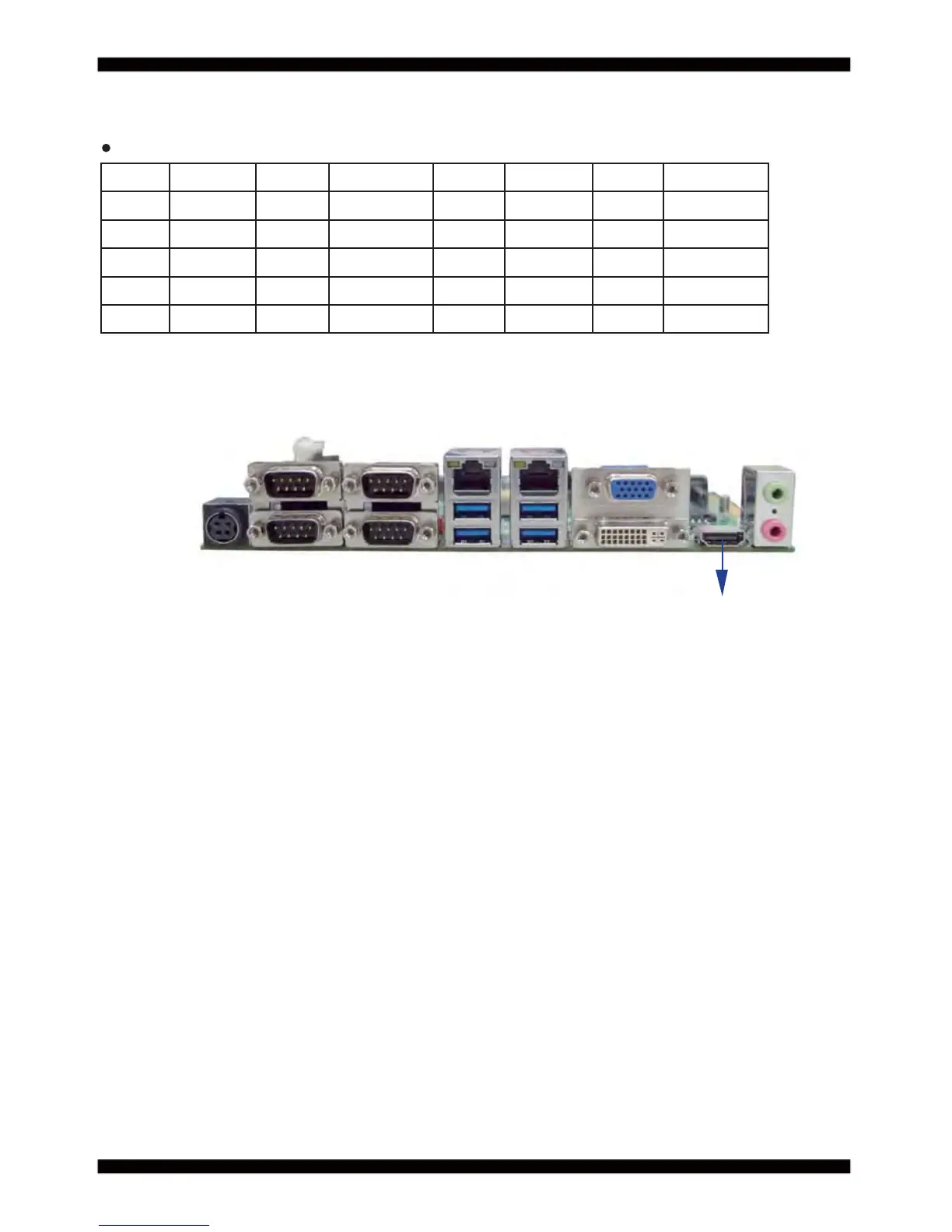

HDMI1: HDMI Connector (Type A)
PIN NO. Description PIN NO. Description PIN NO. Description PIN NO. Description
1 TMDS2(p) 2 GND 3 TMDS2(n) 4 TMDS1(p)
5 GND 6 TMDS1(n) 7 TMDS0(p) 8 GND
9 TMDS0(n) 10 TMDS CLK(p) 11 GND 12 TMDSCLK(n)
13 NC 14 NC 15 DDC CLK 16 DDC DATA
17 GND 18 +5V 19 HPD
3-7 HDMI interface
HDMI
