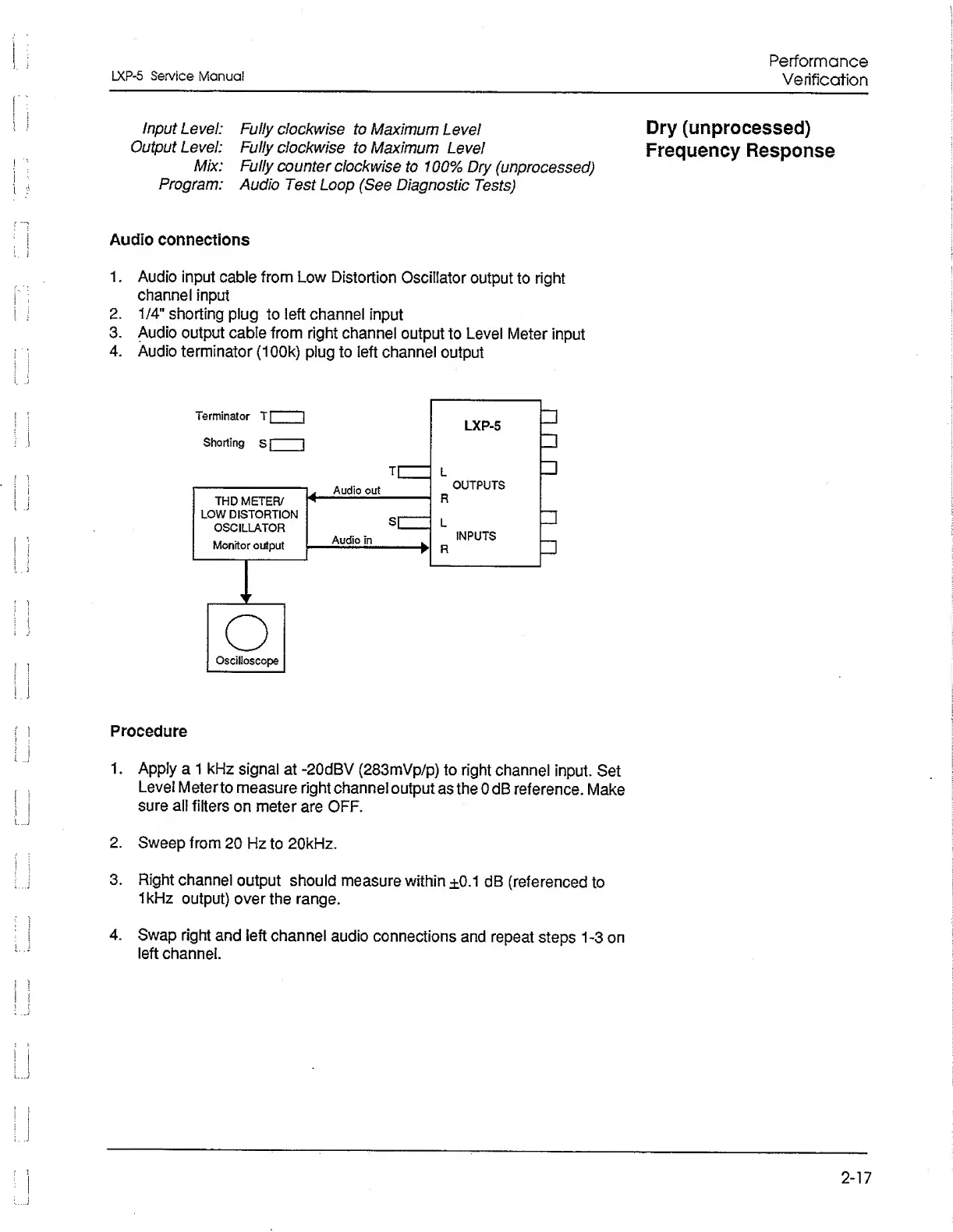

LXP-5
Service
Manual
Performance
Verification
Input
Level:
Output
Level:
Mix:
Program:
Fully
clockwise
to
Maximum
Level
Fully
clockwise
to
Maximum
Level
Fully
counter
clockwise
to
100%
Dry
(unprocessed)
Audio
Test
Loop
(See
Diagnostic
Tests)
Dry
(unprocessed)
Frequency
Response
Audio
connections
1.
Audio
input
cable
from
Low
Distortion
Oscillator
output
to
right
channel
input
2.
1/4"
shorting
plug
to
left
channel
input
3.
Audio
output
cable
from
right
channel
output
to
Level
Meter
input
4.
Audio
terminator
(100k)
plug
to
left
channel
output
Procedure
1.
Apply
a
1
kHz
signal
at
-20dBV
(283mVp/p)
to
right
channel
input.
Set
Level
Meter
to
measure
right
channel
output
as
the
0
dB
reference.
Make
sure
all
filters
on
meter
are
OFF.
2.
Sweep
from
20
Hz
to
20kHz.
3.
Right
channel
output
should
measure
within
±0.1
dB
(referenced
to
1kHz
output)
over
the
range.
4.
Swap
right
and
left
channel
audio
connections
and
repeat
steps
1
-3
on
left
channel.
