Lexicon LXP-5 Service Manual

LXP-5 Service Manual

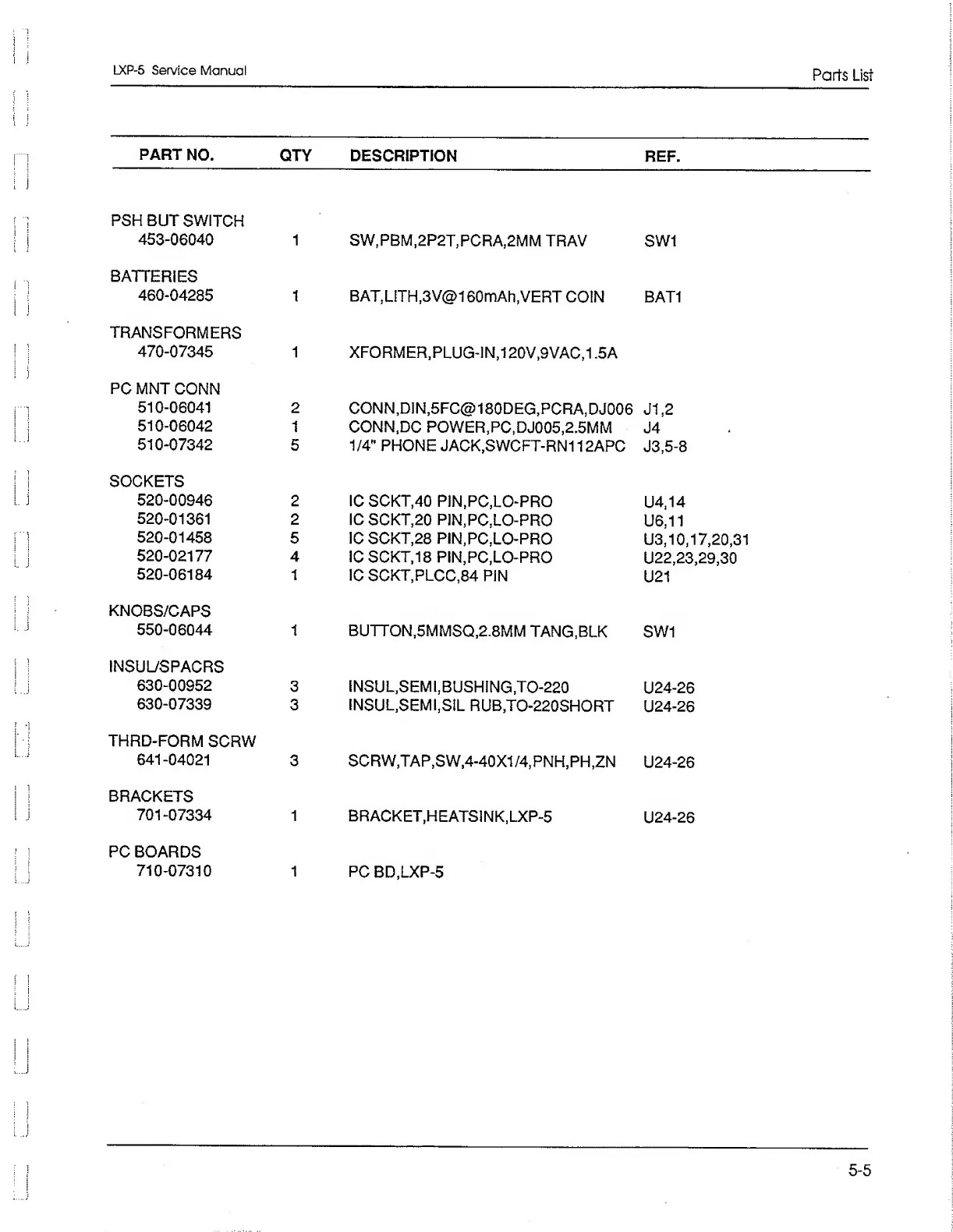

Parts List
PART NO. QTY DESCRIPTION REF.
PSHBUT SWITCH
453-06040 1 SW,PBM,2P2T,PCRA,2MM TRAV SW1
BATTERIES
460-04285 1 BAT,LITH,3V@160mAh,VERT COIN BAT1
TRANSFORMERS
470-07345 1 XFORMER,PLUG-IN,120V,9VAC,1.5A
PC MNT CONN
510-06041 2 CONN,DIN,5FC@180DEG,PCRA,DJ006 J1,2
510-06042 1 CONN,DC POWER,PC,DJ005.2.5MM J4
510-07342 5 1/4" PHONE JACK,SWCFT-RN112APC J3.5-8
SOCKETS
520-00946
520-01361
520-01458
520-02177
520-06184
KNOBS/CAPS
550-06044 1 BUTTON,5MMSQ,2.8MM TANG.BLK SW1
INSUL/SPACRS
630-00952 3 INSUL,SEMI,BUSHING,TO-220 U24-26
630-07339 3 INSUL,SEMI,SIL RUB,TO-220SHORT U24-26
THRD-FORM SCRW
641-04021 3 SCRW,TAP,SW,4-40X1/4,PNH,PH,ZN U24-26
BRACKETS
701-07334 1 BRACKET,HEATSINK,LXP-5 U24-26
PC BOARDS
710-07310 1 PC BD,LXP-5
2 1C SCKT.40 PlN,PC,LO-PRO U4.14
2 1C SCKT,20 PIN,PC,LO-PRO U6,11
5 1C SCKT,28 PIN,PC,LO-PRO U3,10,17,20,31
4 ICSCKT.18 PIN,PC,LO-PRO U22,23,29,30
1 1C SCKT,PLCC,84 PIN U21
5-5
