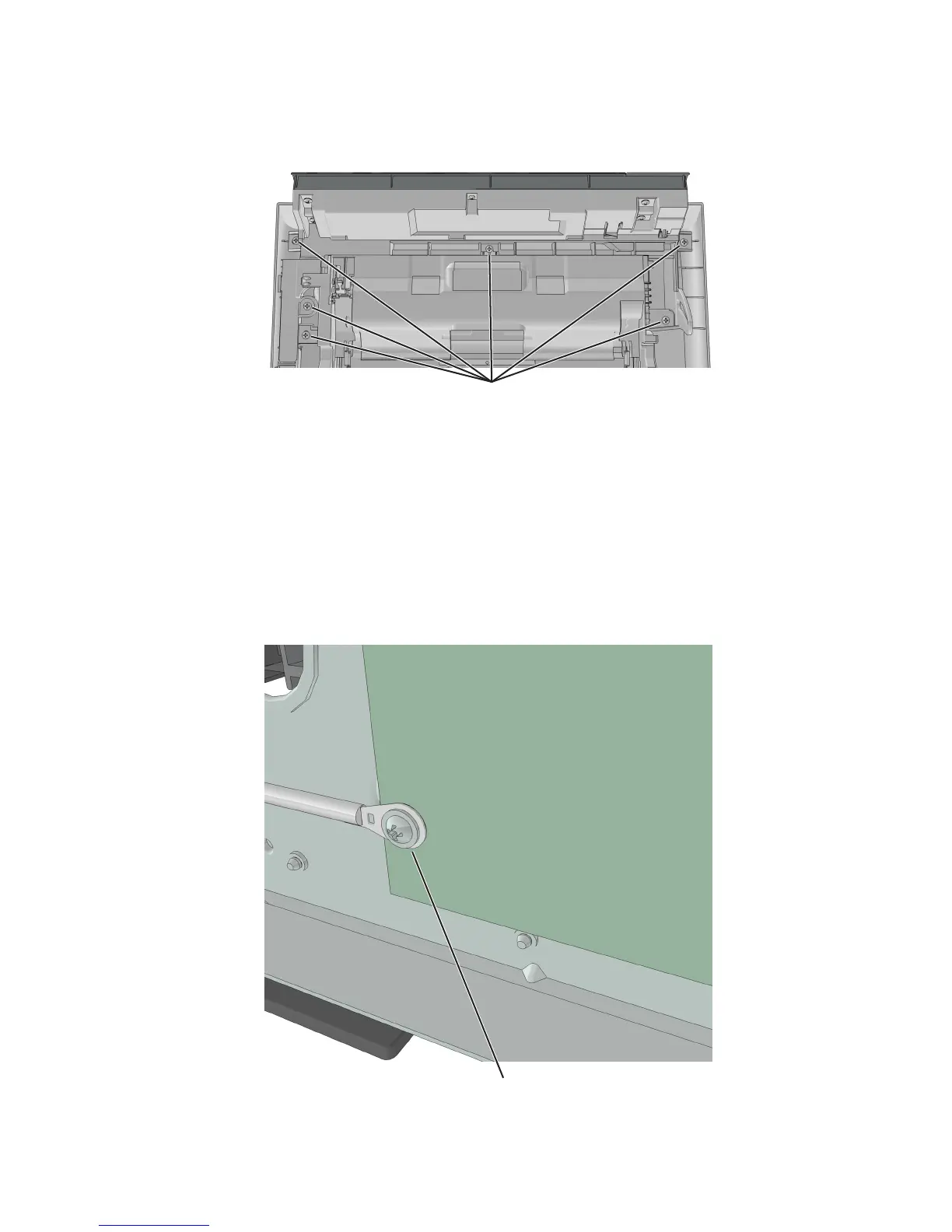

5 Remove the six screws (D) securing the nameplate.

Control panel assembly removals

Control panel assembly removal (MS510dn and MS610dn)

1 Remove the right cover. See “Right cover removal” on page 178.

2 Remove the nameplate. See “Nameplate removals” on page 199.

3 Remove the bezel. See “Bezel removals” on page 197.

4 Remove the screw (A) securing the ground connector to the controller board.

4514-630, -635, -636

Repair information

201
