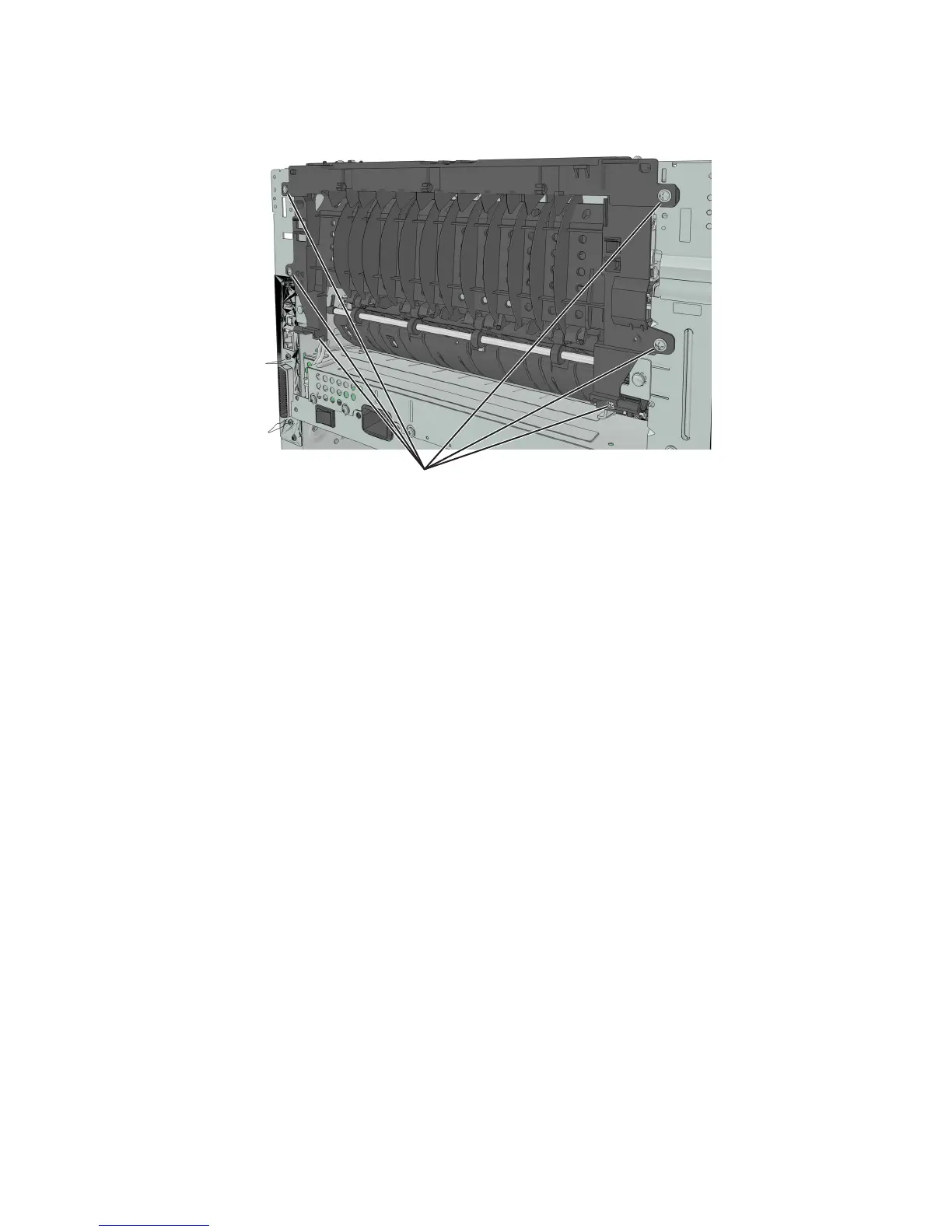

7 Remove the six screws (B) securing the redrive assembly.

Fuser removal

1 Remove the right cover. See “Right cover removal” on page 178.

2 Remove the rear door and cover. See “Rear door and cover removal” on page 240.

3 Remove the redrive assembly. See “Redrive assembly removal” on page 243

4 Disconnect the cable JEXIT1 from the controller board.

5 Disconnect the two cables (A).

4514-630, -635, -636

Repair information

244
