Front input guide removal

1 Remove the right cover. See “Right cover removal” on page 178.

2 Remove the front door. See “Front door removal” on page 215.

3 Remove the MPF pick roller cover. See “MPF pick roller cover removal” on page 213.

4 Remove the MPF pick roller. See “MPF pick roller removal” on page 213.

5 Remove the jam access cover. See “Jam access cover removal” on page 214.

6 Disconnect cable JMPF1 from the controller board.

7 Remove the four screws (A).

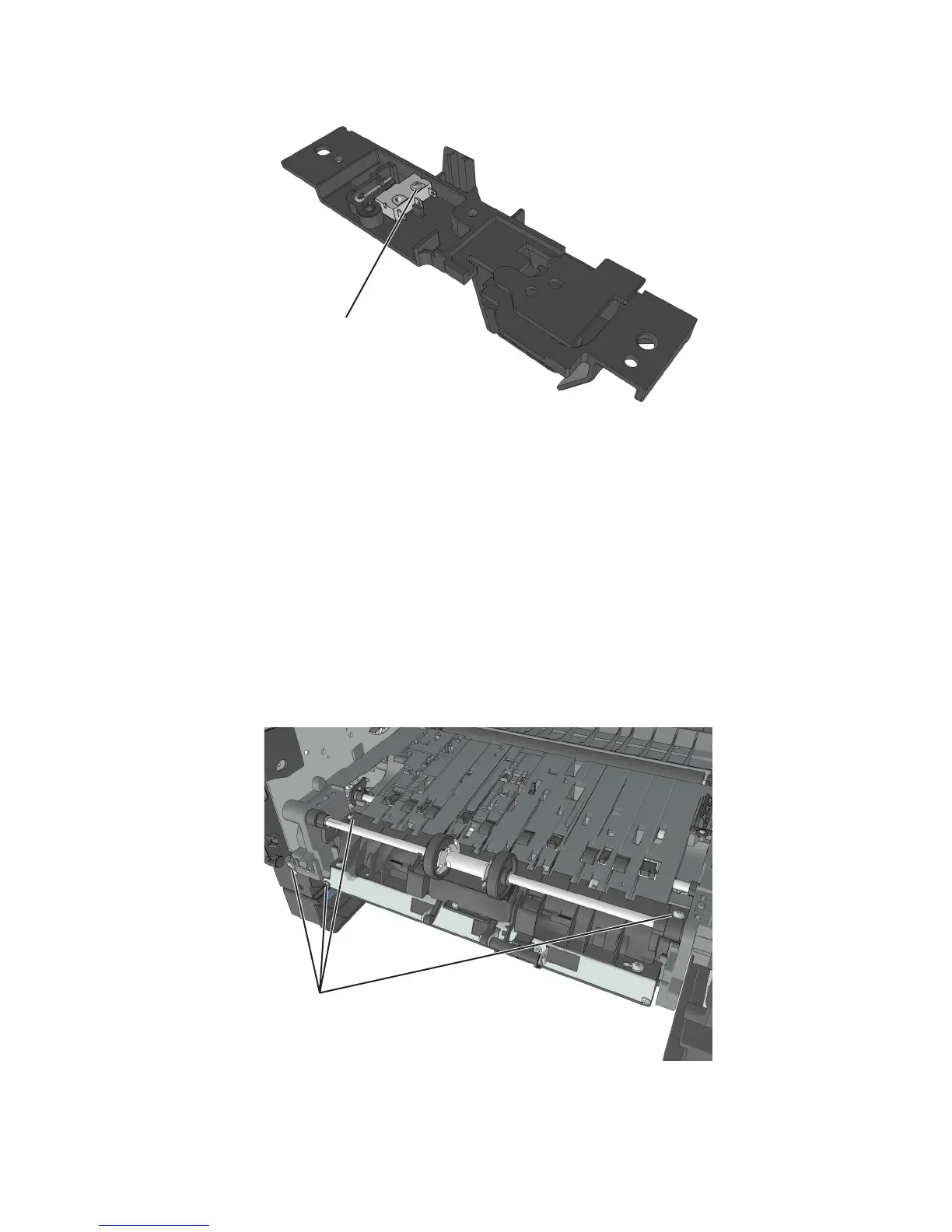

8 Push and hold the cam restraint to release the MPF shaft.

4514-630, -635, -636
