Lexmark MS510 Series - Power Supply Shield Removal

To Next Page

To Previous Page

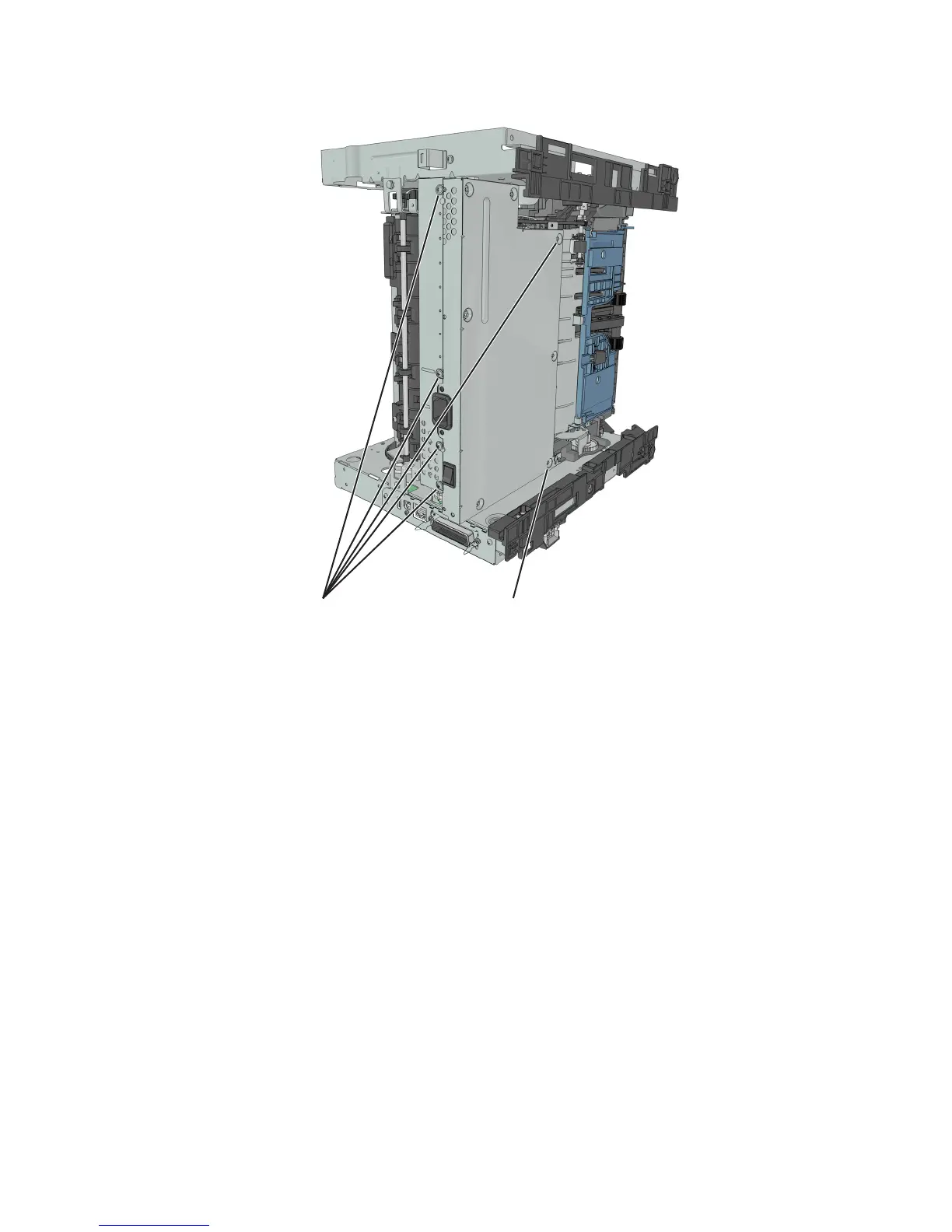

5 Remove the five metal screws (C) and the plastic screw (D) securing the power supply.

6 Remove the power supply, and then disconnect the cable from the power supply.

Power supply shield removal

1 Remove the left cover. See “Left cover removal” on page 166.

2 Remove the rear door and cover. See “Rear door and cover removal” on page 240.

3 Remove the power supply. See “Power supply removal” on page 223.

4 Position the printer so that it sits on its right side.

4514-630, -635, -636

Repair information

225
