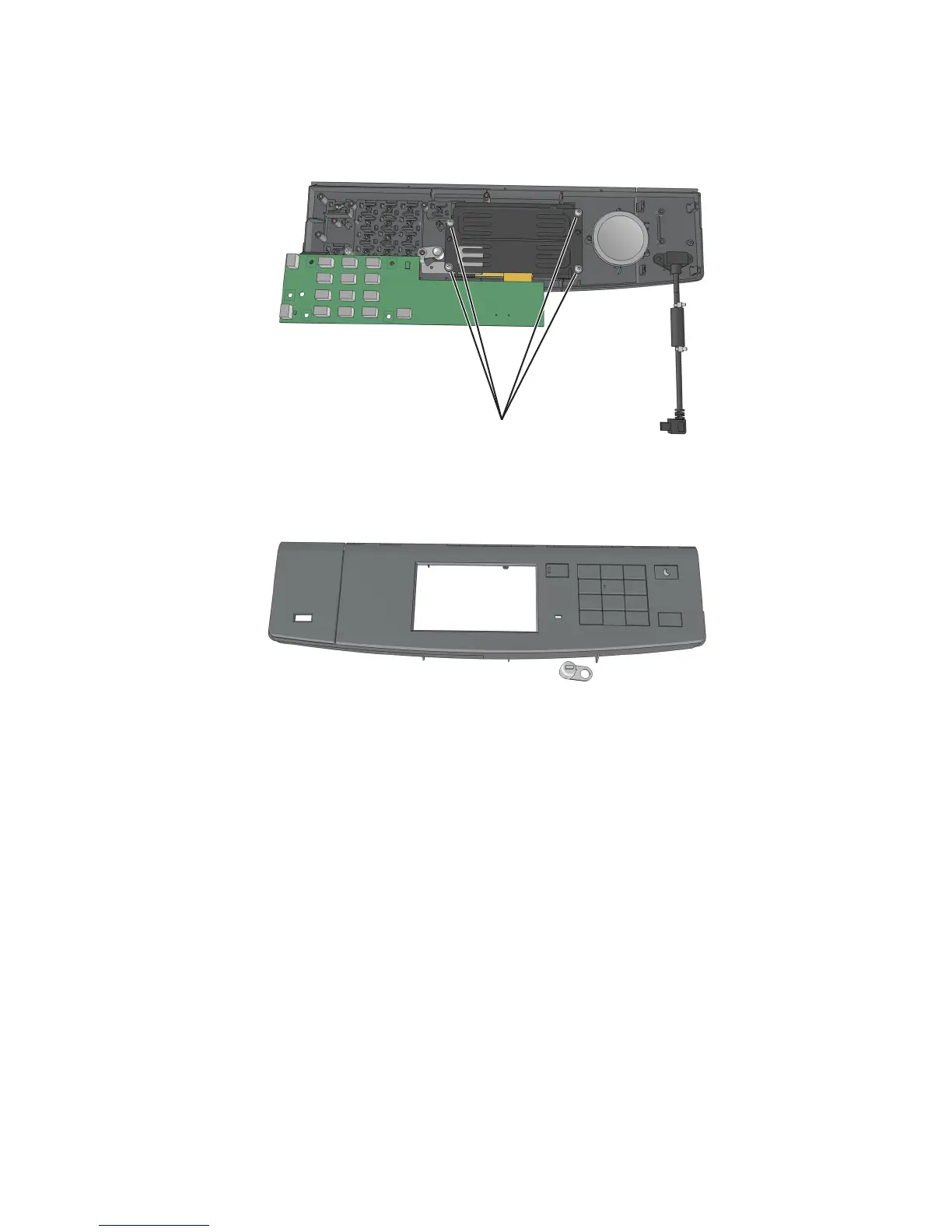

7 Flip the UICC, and remove the four screws (C) securing the display bracket.

Note: The control panel cover, buttons, and light pipe are not included with the UICC.

Control panel USB port removal (MS610dn)

1 Remove the right cover. See “Right cover removal” on page 178.

2 Remove the nameplate. See “Nameplate removals” on page 199.

3 Remove the bezel. See “Bezel removals” on page 197.

4 Remove the control panel assembly. See “Control panel assembly removals” on page 201.

4514-630, -635, -636

Repair information

208
