Index sensor removal
1 Remove the left cover. See “Left cover removal” on page 166.
2 Remove the right cover. See “Right cover removal” on page 178.
3 Remove the rear door and cover. See “Rear door and cover removal” on page 240.
4 Remove the power supply. See “Power supply removal” on page 223.
5 Remove the power supply shield. See “Power supply shield removal” on page 225.
6 Remove the duplex. See “Duplex removal” on page 226.

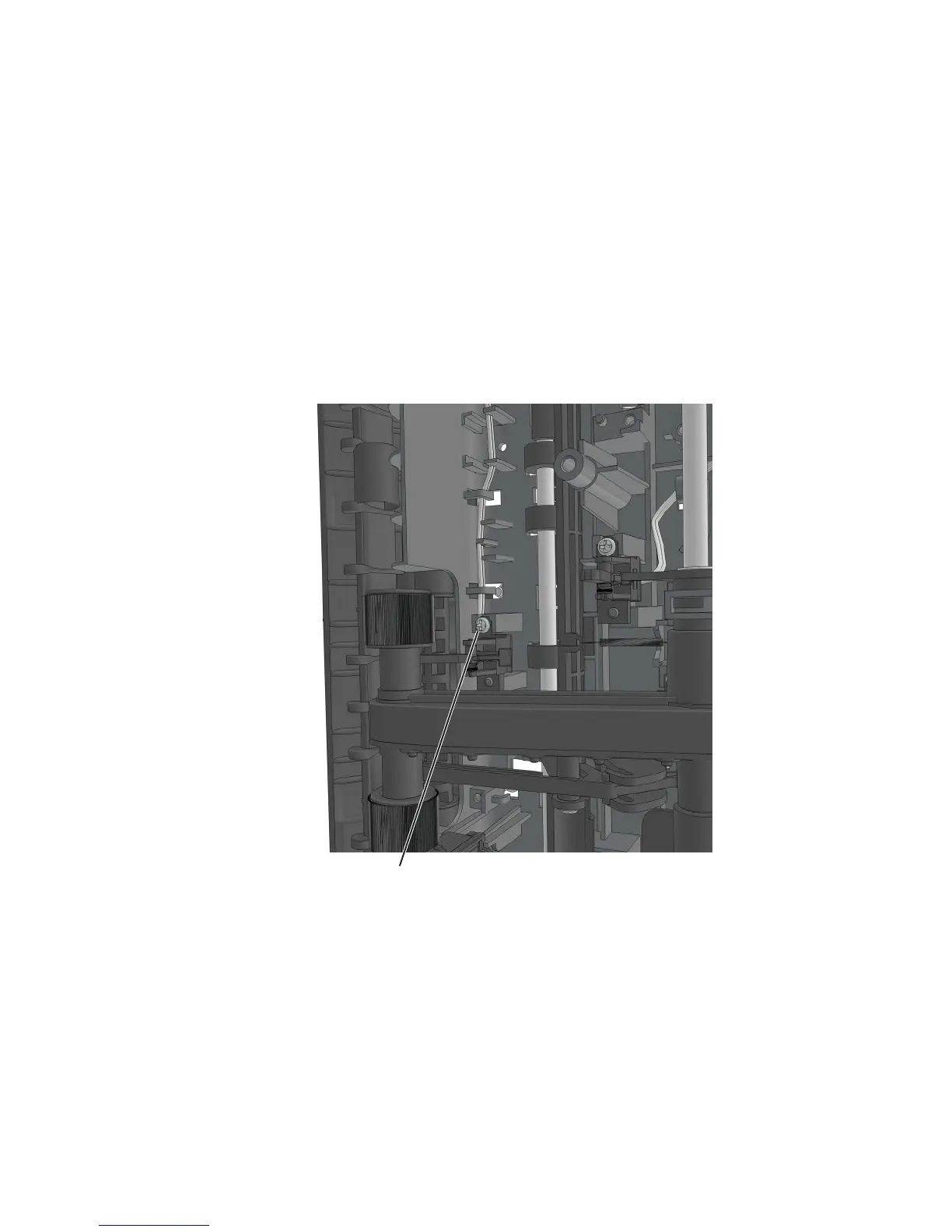

7 Disconnect the cable JINDEX1 from the system board.
8 Remove the screw (A).
9 Route off the cable, and then remove the index sensor.
A
Media present sensor removal
1 Remove the left cover. See “Left cover removal” on page 166.
2 Remove the rear door and cover. See “Rear door and cover removal” on page 240.
3 Remove the power supply. See “Power supply removal” on page 223.
4 Remove the power supply shield. See “Power supply shield removal” on page 225.
5 Remove the duplex. See “Duplex removal” on page 226.
4514-630, -635, -636
Repair information
230
