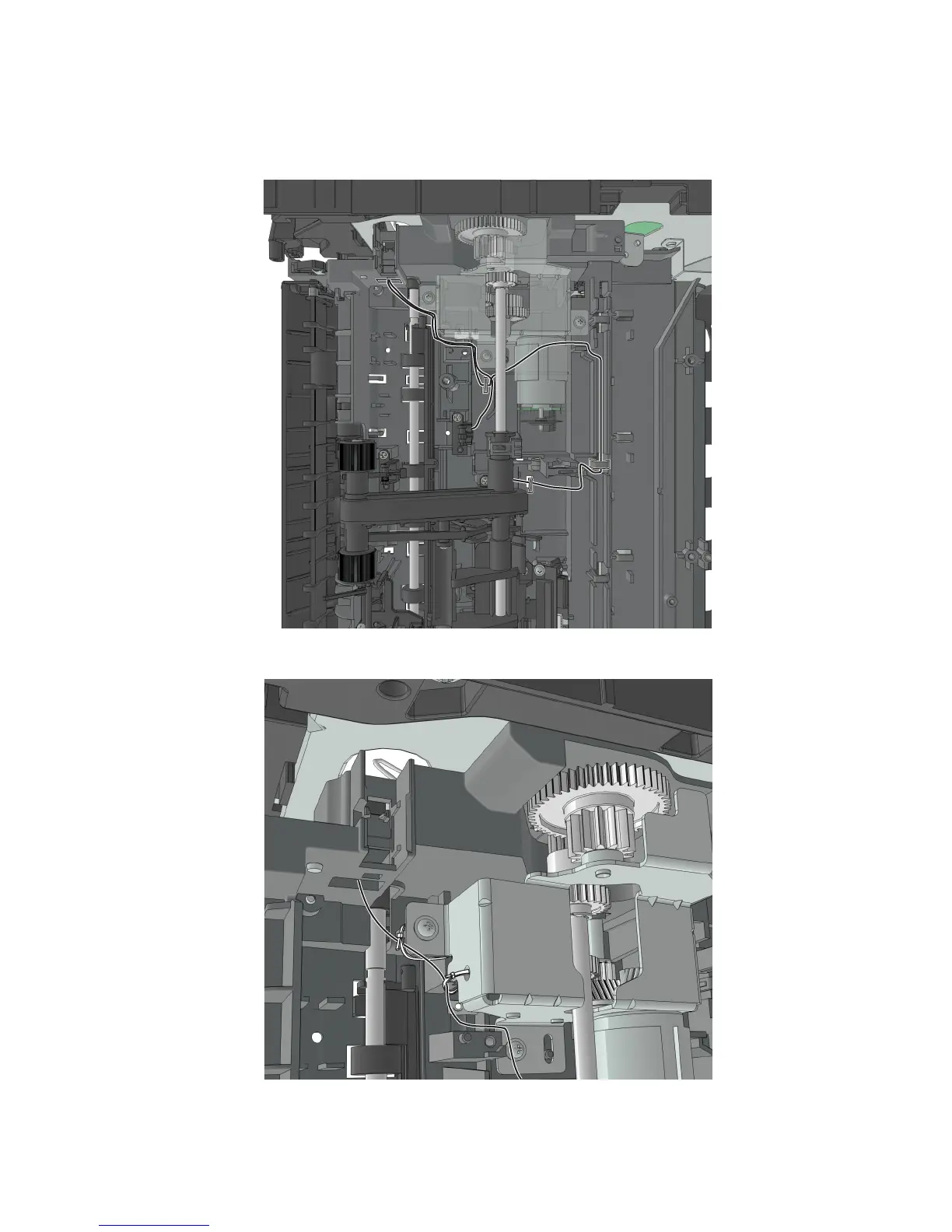

Installation notes:

a Install the duplex sensor, followed by the input sensor.

b Route the cable using the new path.

c Secure the cable at the pick/lift motor gearbox using cable ties. Cut off any excess cable tie.

4514-630, -635, -636

Repair information

229
