4 Remove the top cover. See “Top cover removal” on page 238.
5 Disconnect the cable JDUPSOL1 from the controller board.

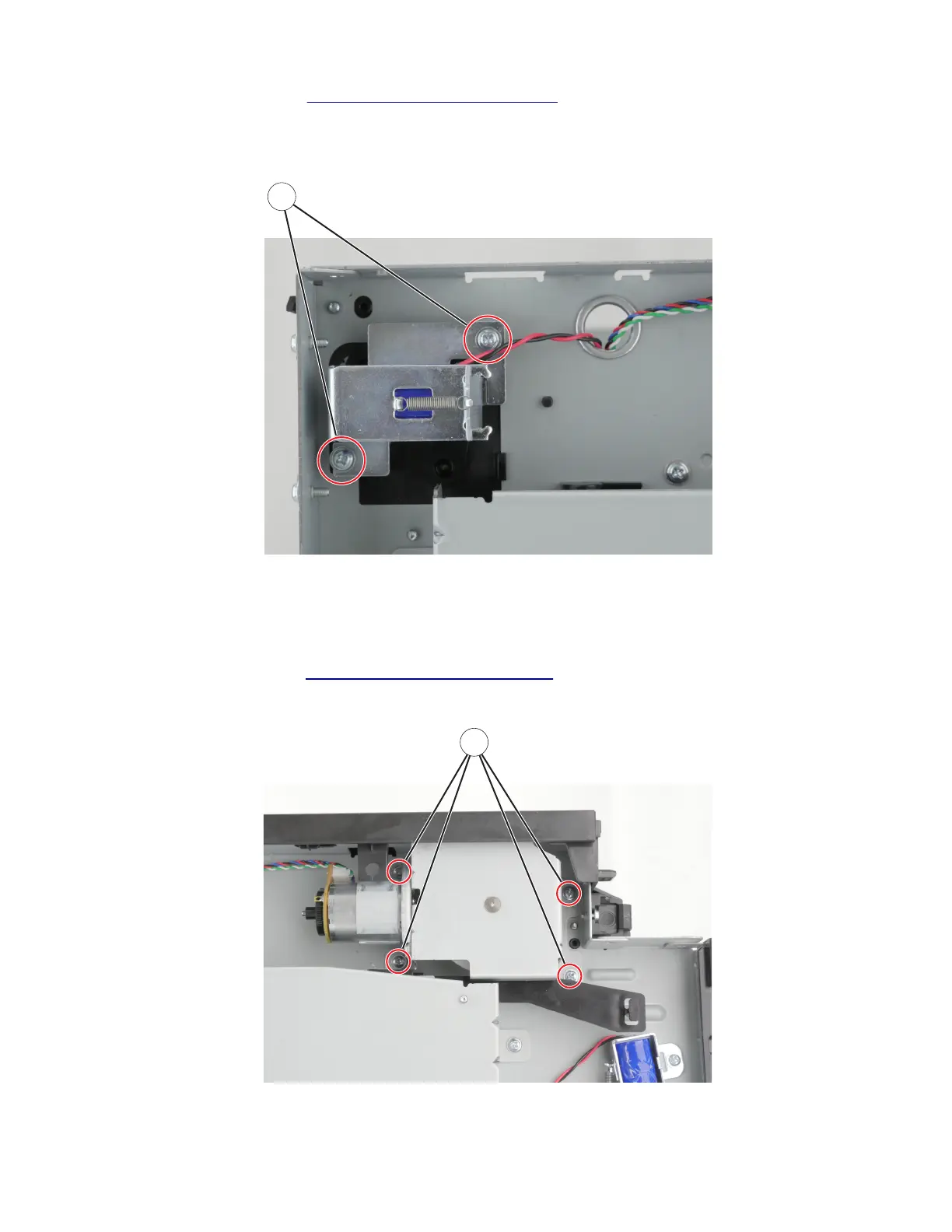

6 Remove the two screws (A).
A
7 Remove the solenoid.
Cartridge gearbox removal
1 Remove the left cover. See “Left cover removal” on page 177.
2 Remove the four screws (A).
A
4600-830, -835, -895
Parts removal
184
