Lexmark MS622 Service Manual

Front removals

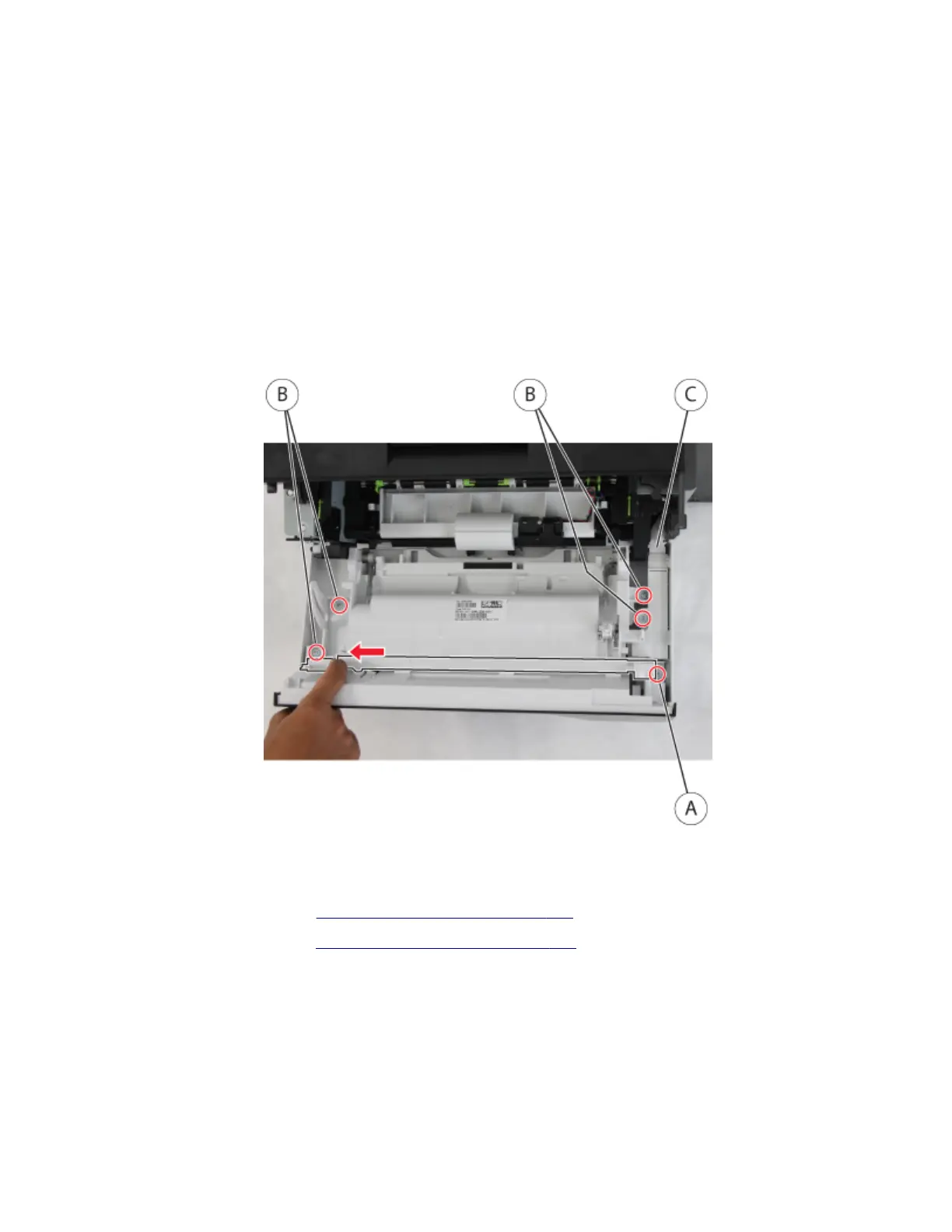

Nameplate removal
1 Open the front door.
2 Push the latch to the left, and then remove the screw (A).
3 Remove the four screws (B).
4 Remove the nameplate.
Note: The MPF hinders the removal.
Warning—Potential Damage: Avoid damaging the cable (C) when removing the nameplate.
MPF with front access cover removal
1 Remove the nameplate. See “Nameplate removal” on page 201.
2 Remove the right cover. See “Right cover removal” on page 186.
4600-830, -835, -895
Parts removal
201

Lexmark MS622 Specifications

General

Print Resolution	1200 x 1200 dpi
Monthly Duty Cycle	Up to 175, 000 pages
Print Technology	Laser
Input Capacity	Up to 650 sheets
Output Capacity	250 pages
Processor Speed	1 GHz
Memory	512 MB
Connectivity	USB, Ethernet, Optional Wireless
Recommended Monthly Page Volume	2, 000 - 20, 000 pages
Media Sizes Supported	A4, A5, A6, Legal, Letter, Executive
Supported Operating Systems	Windows, macOS, Linux
Duplex Printing	Standard
