Bottom removals
Power supply removal
CAUTION—POTENTIAL INJURY: This product uses a soft power switch. It does not physically
disconnect the input AC voltage. To avoid the risk of electrical shock, always remove the power cord
from the printer when removal of the input AC voltage is required.
CAUTION—SHOCK HAZARD: The low-voltage power supply (LVPS) may have residual voltage present.
To avoid the risk of electrical shock, do not touch its circuit components. Only handle it by its metal
housing.
1 Remove the rear cover. See “Rear door and cover removal” on page 234.

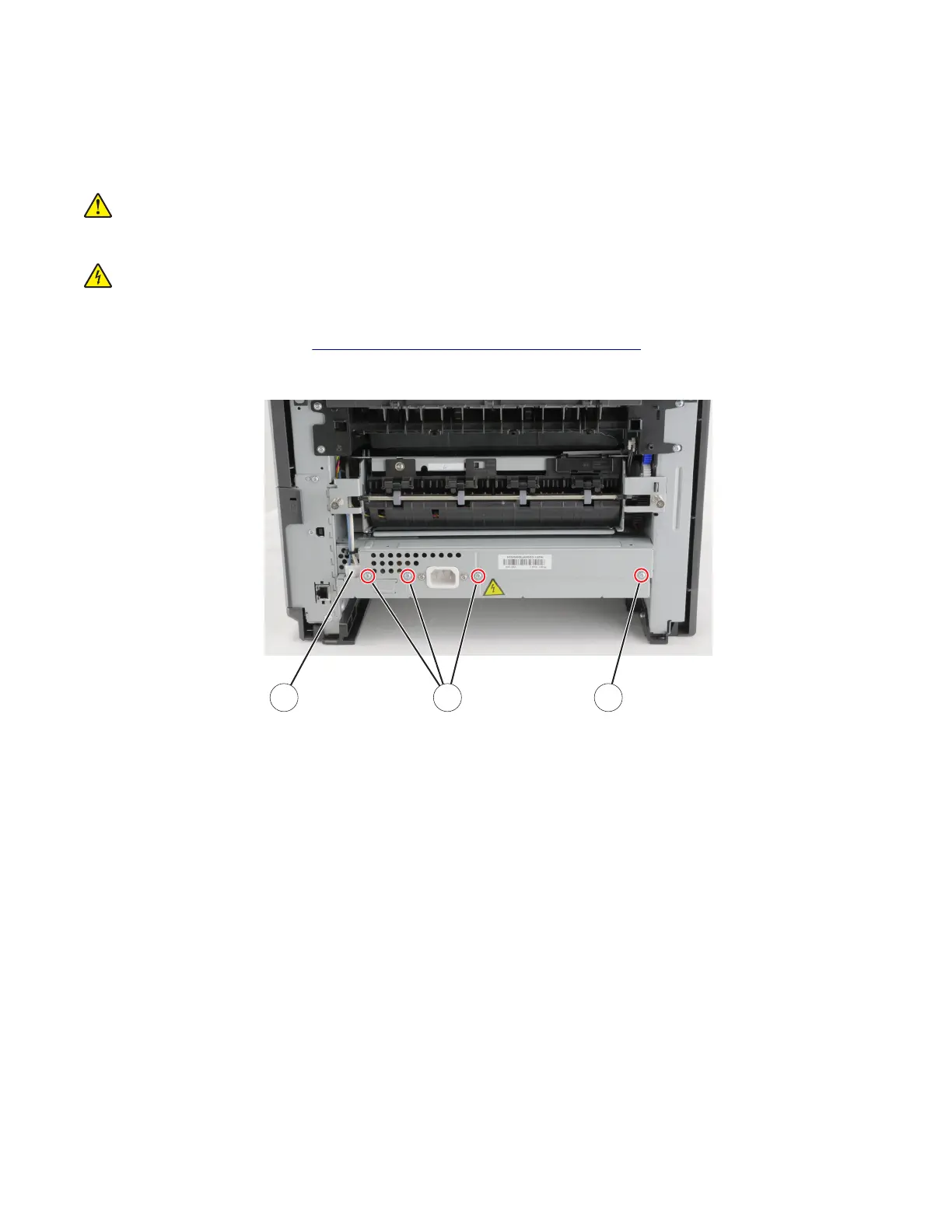

2 Disconnect the cable (A), and then remove the screws (B).
BBA
4600-830, -835, -895
Parts removal
