Lexmark MS622

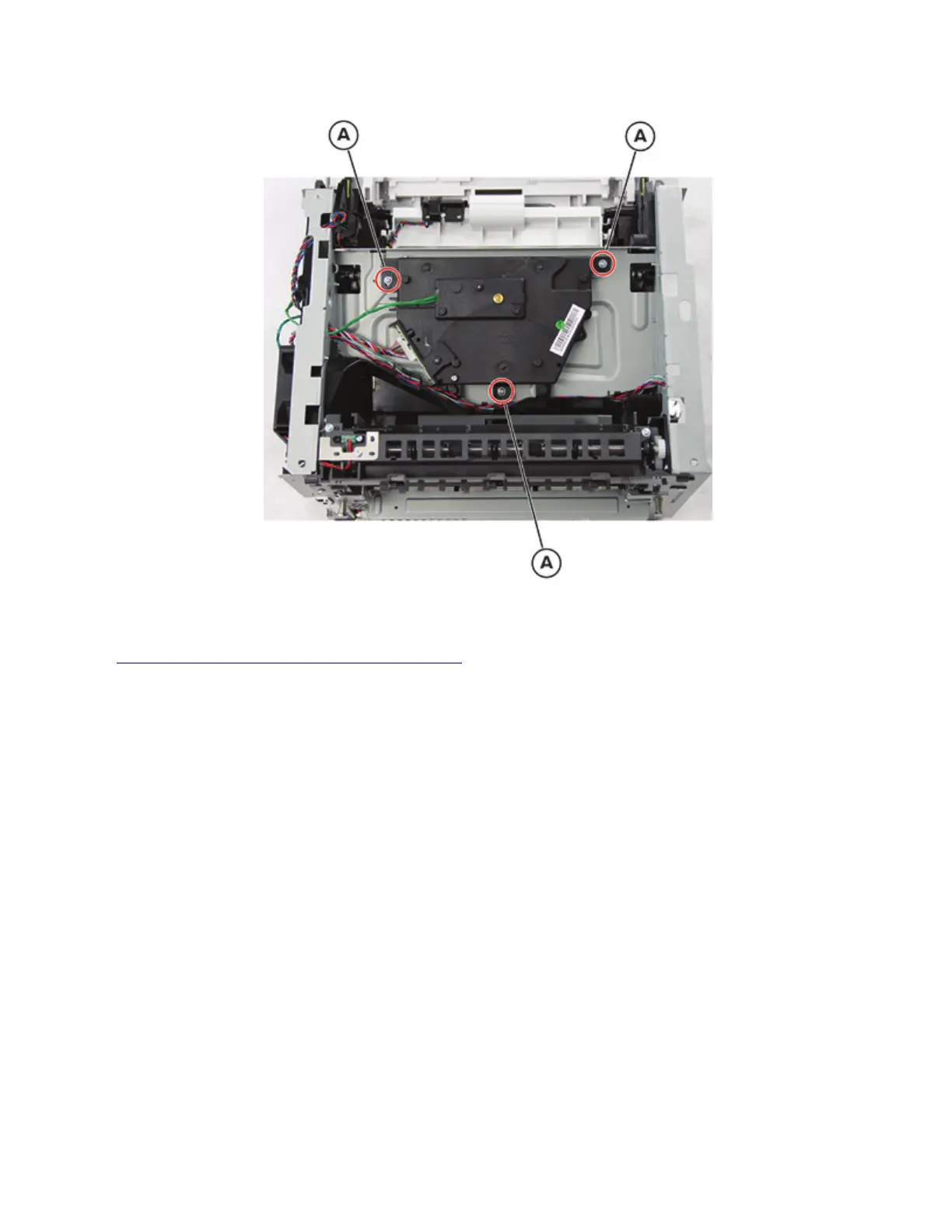

7 Remove the three screws (A).
8 Remove the printhead.
Installation note: Perform all the mechanical and electronic adjustments to the printhead after replacing it.
See
“Printhead assembly adjustment” on page 175.
4600-830, -835, -895
Parts removal
241
