Lexmark MS810 Series

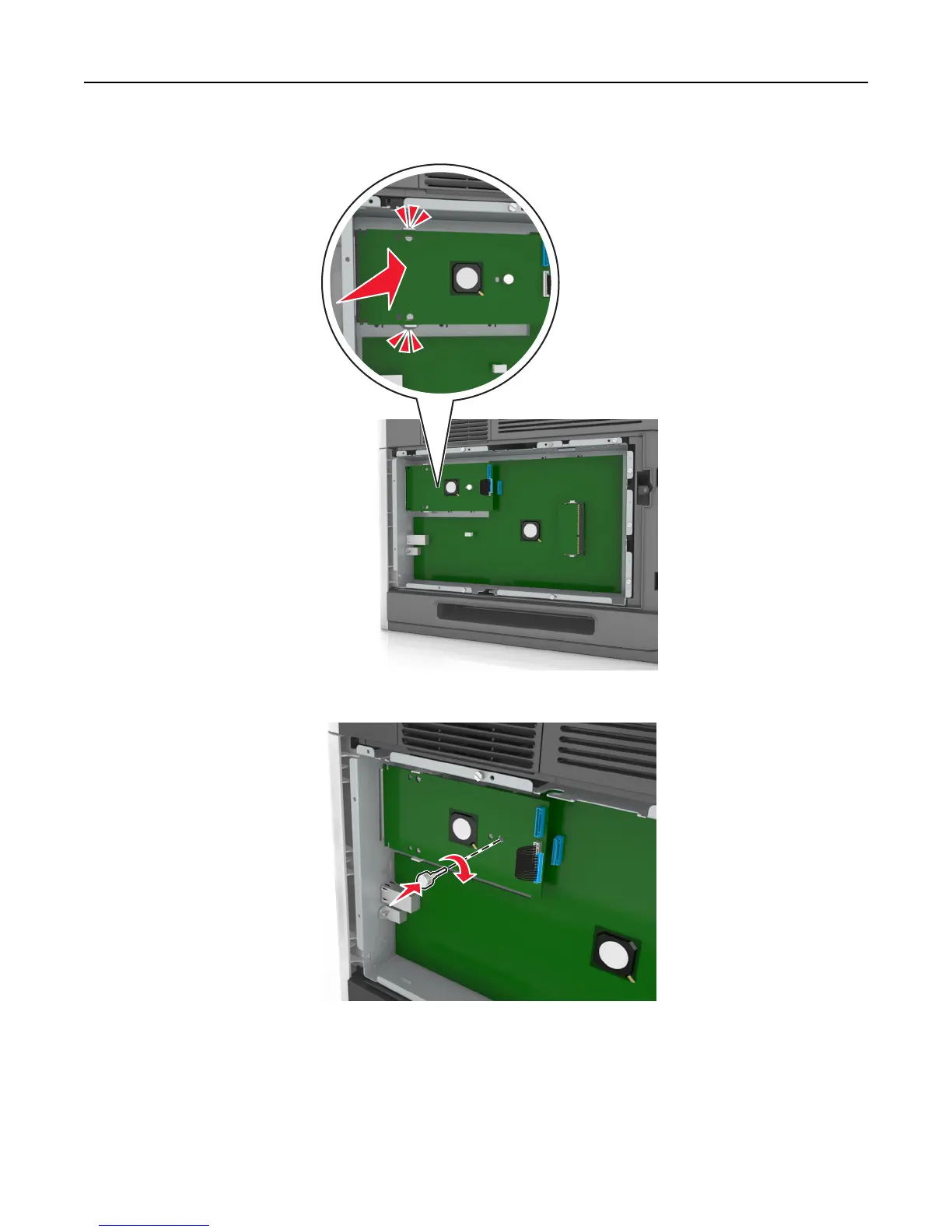

7 Lower the ISP toward the plastic bracket until the ISP is seated between the guides of the plastic bracket.
8 Use the provided thumbscrew for the ISP to attach the plastic bracket to the ISP.
Note: Turn the screw clockwise, enough to hold the ISP in place, but do not tighten it yet.
Additional printer setup 19
