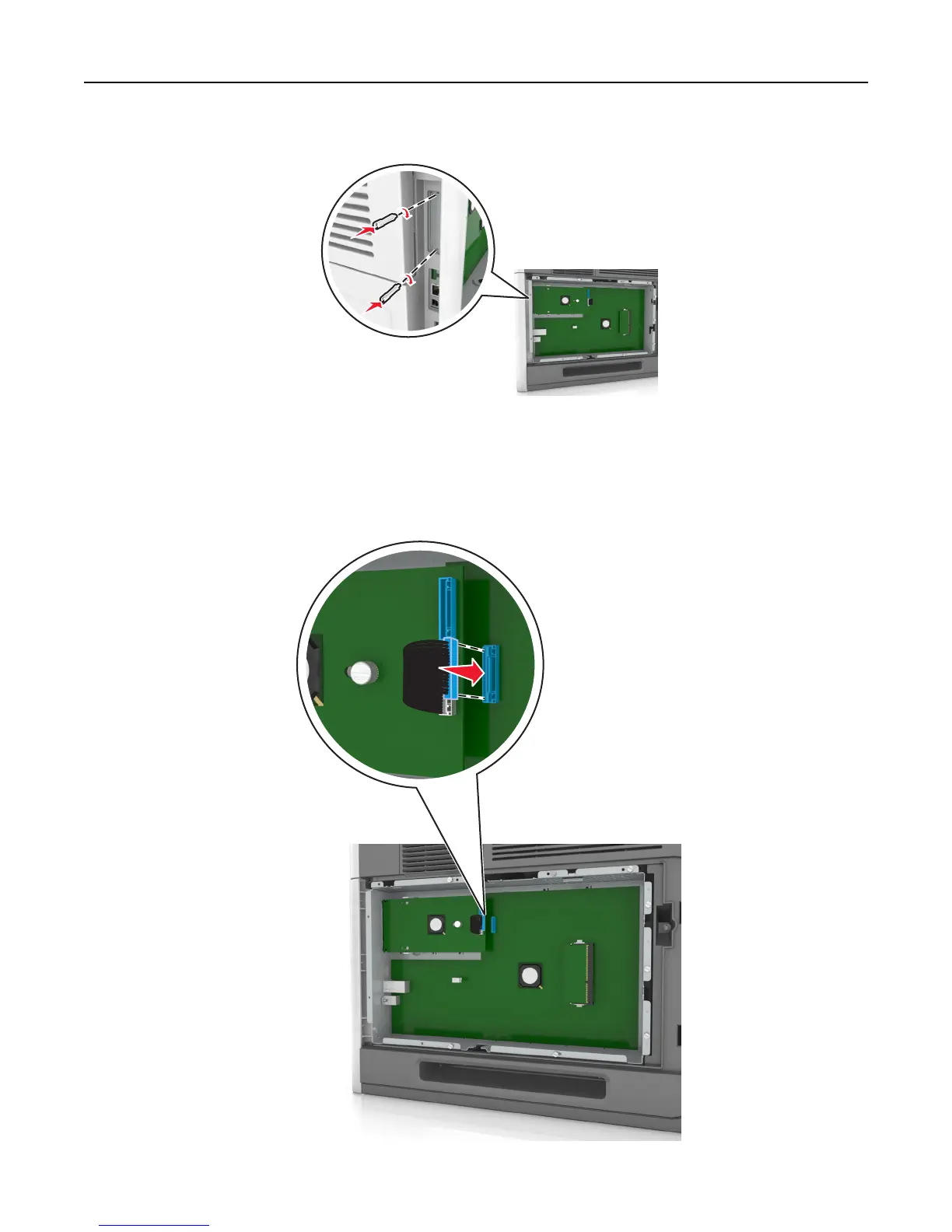

9 Attach the two provided screws to secure the ISP mounting bracket to the controller board shield.
10 Tighten the thumbscrew that is attached to the ISP.
Warning—Potential Damage: Do not screw it on too tightly.
11 Connect the ISP solution interface cable into the receptacle of the controller board.
Note: The plugs and receptacles are color-coded.
Additional printer setup 20
