Clearing staple jams

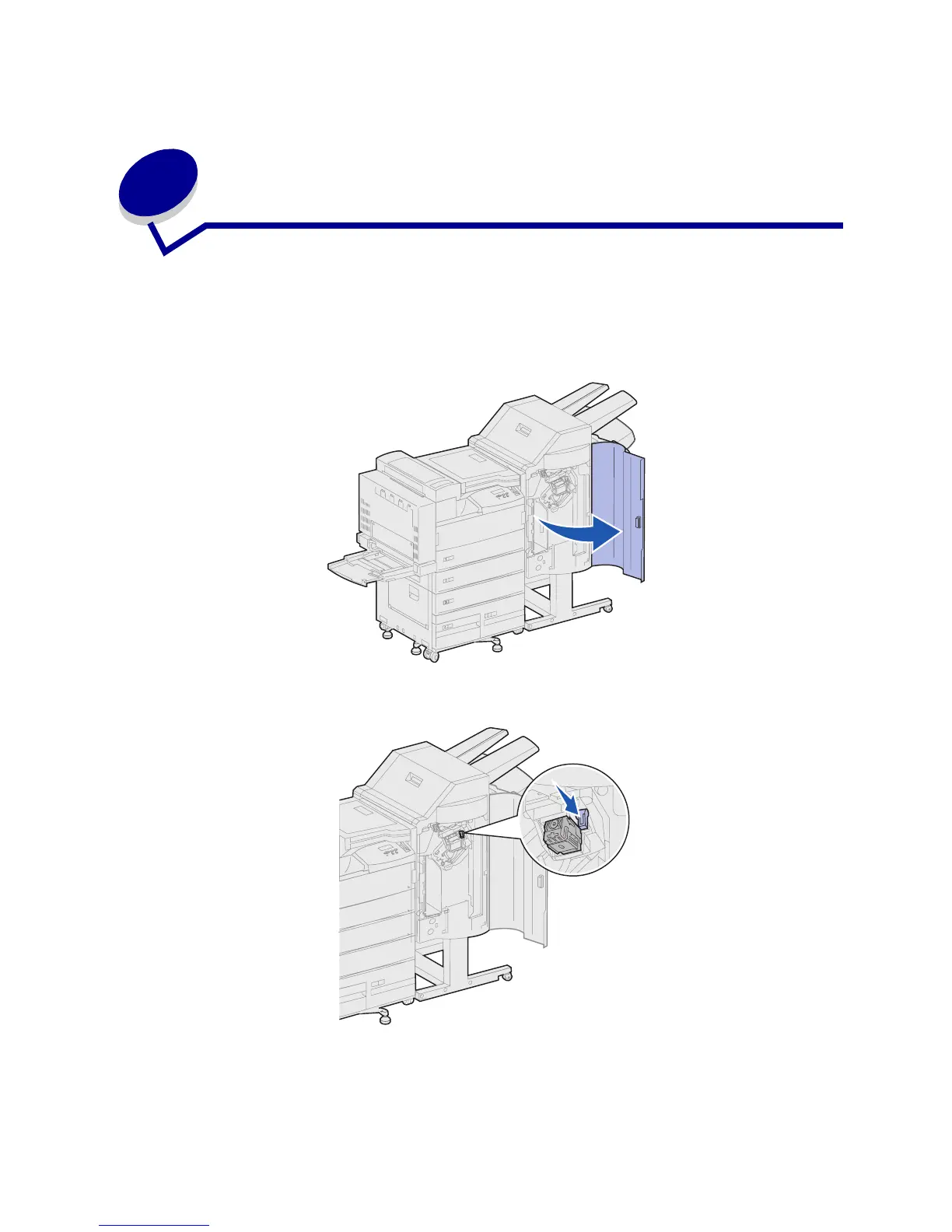

To clear the staple jam so you can continue printing and stapling:

1 Open the finisher door (Door K).

2 Push down the lever on the stapler.

The staple cartridge holder is released.
