Lexmark W820n - Clearing Jams from the Optional Envelope Feeder

86
Clearing jams from the optional envelope feeder
1 Remove the envelope feeder. See Removing the optional envelope feeder.

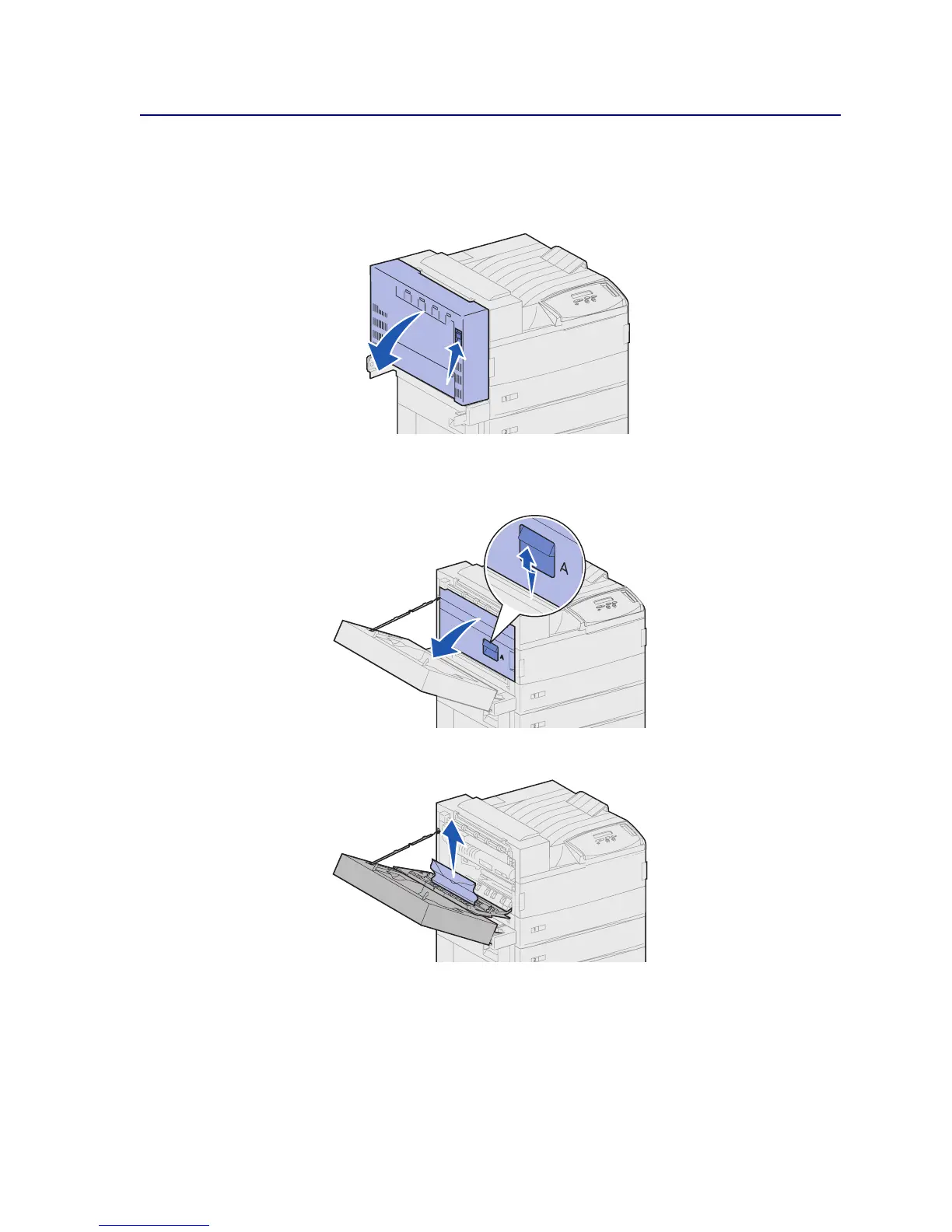

2 Push up on the latch to release the duplex unit door (Door E).
3 Gently lower the door to the open position.
4 Pull up on handle to open the printer side door (Door A).
5 Pull the jammed envelope straight out.
6 Close the printer side door (Door A).
7 Close the duplex unit door (Door E).
8 Reinstall the envelope feeder. See Reinstalling the envelope feeder.
