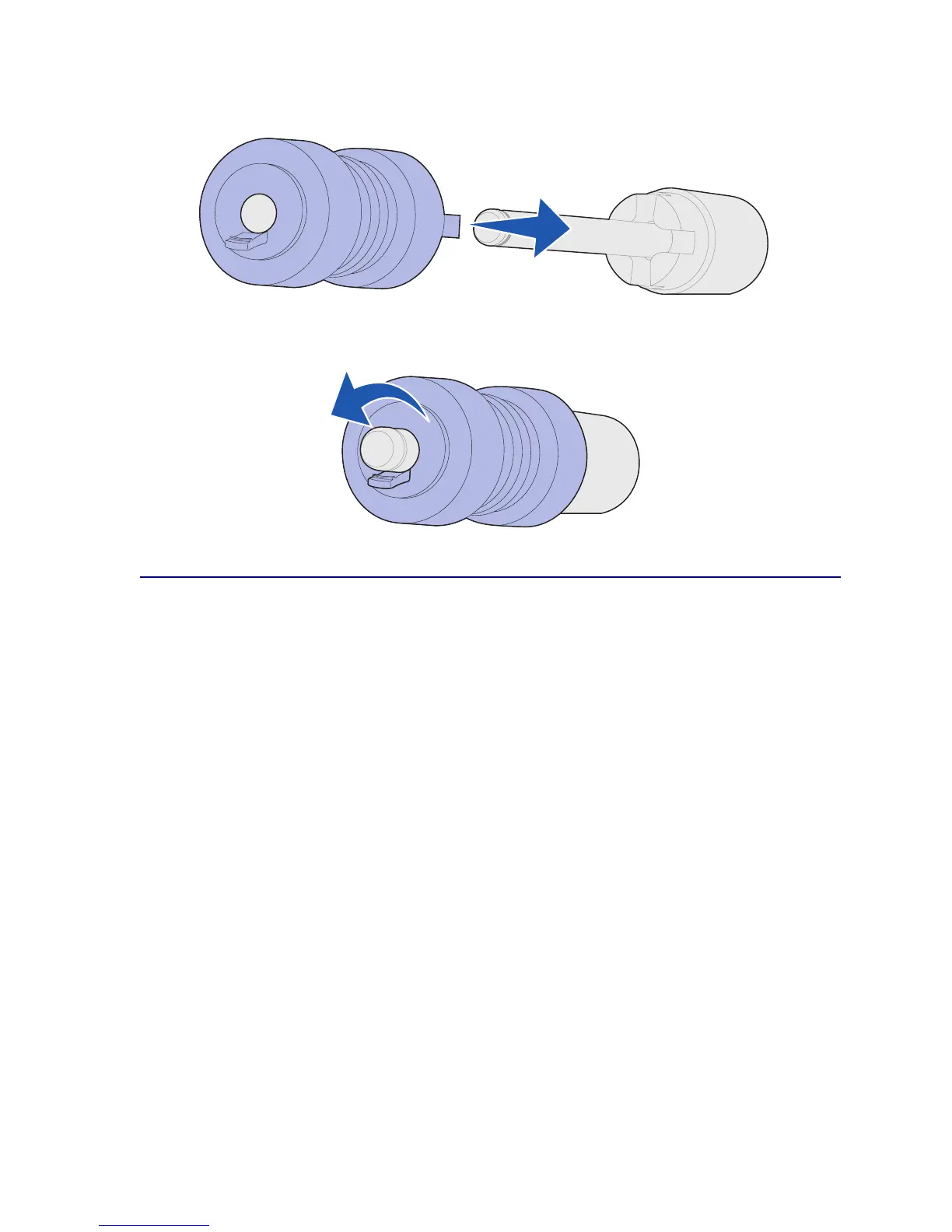

11 Slide the bottom pick roller onto its metal bar until it
snaps
into place.
12 Pull the pick roller gently to see if it is attached. If it pulls loose, then push it back on and turn it
counterclockwise.
Closing up
1 Reinstall trays 1, 2, and 3. See step 5 of Behind trays 1, 2, and 3 or more information.
2 Reinstall tray 4. See step 6 of Behind Tray 4 for more information.
3 Close tray 5. The action of closing the tray forces the metal plate back into place.
4 If you have already replaced all the items listed in the following note, you may turn the printer
on.
Note: Make sure you also follow the instructions in Replacing the fuser, Replacing the
transfer roller, Cleaning the wiper blade,and
Resetting the maintenance page counter.
