130

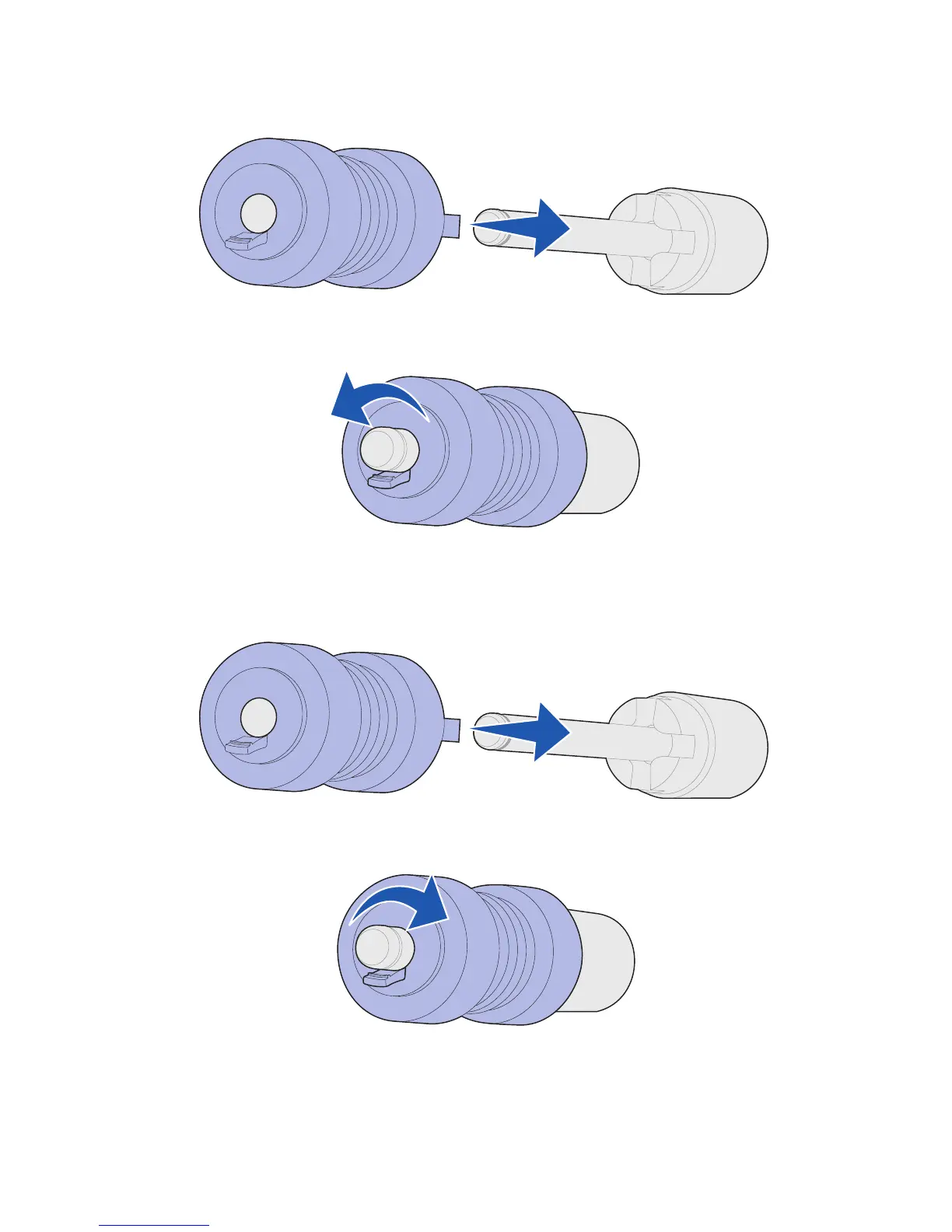

6 Slide the bottom pick roller onto its metal bar until it
snaps
into place.
7 Pull the pick roller gently to see if it is attached. If it pulls loose, then push it back on and turn it
counterclockwise.
8 For tray 5, pull the metal plate toward you. See step 14 on page 128 for an illustration.
9 Install the top right pick roller:
a Slide the pick roller onto the metal bar until it
snaps
into place.
b Pull the pick roller gently to see if it is attached. If it pulls loose, then push it back on and
turn it clockwise.
10 Repeat the instructions for step 9 on page 130 to install the top left pick roller.
