Removing the transport unit

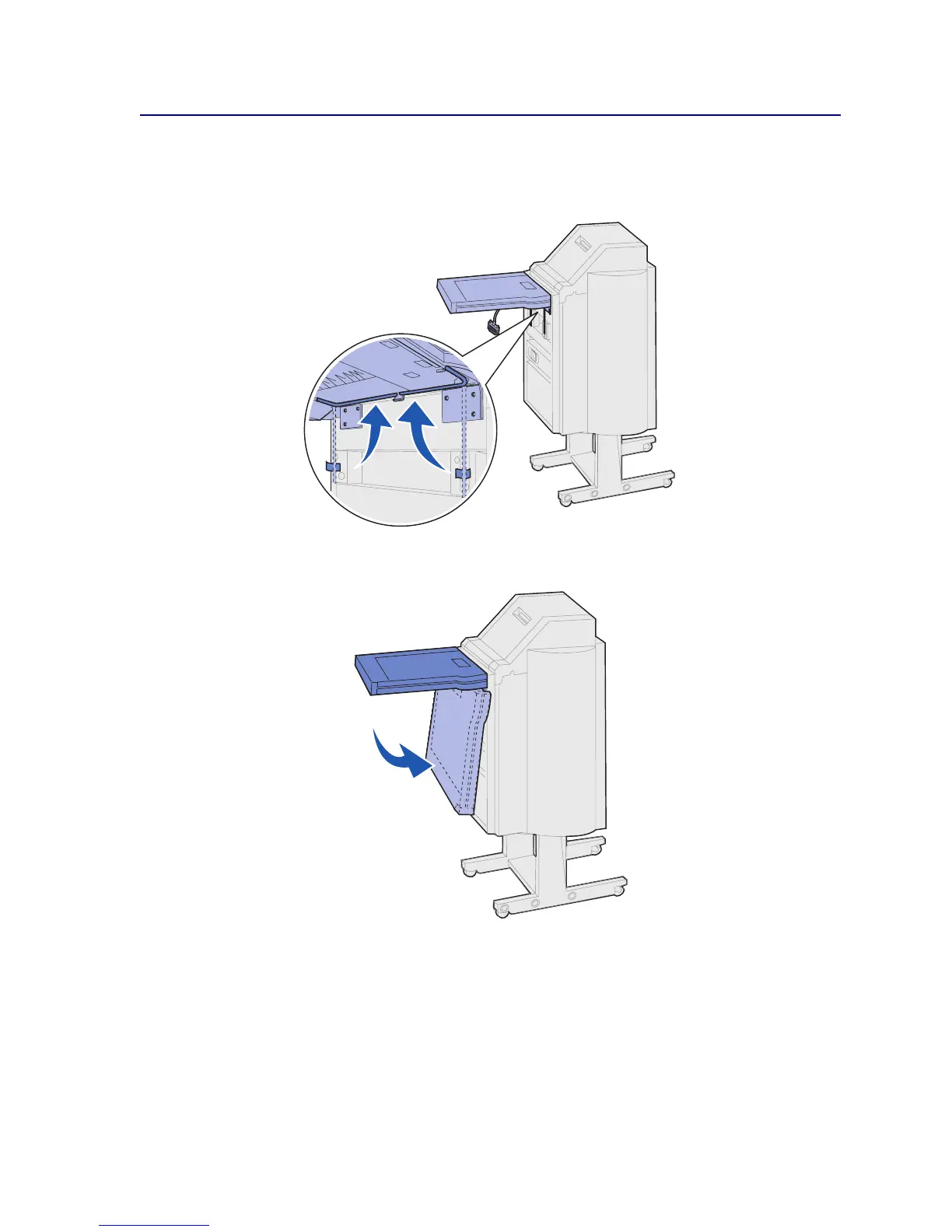

1 While supporting the transport unit, swing the two vertical support levers up. They

snap

into

place in the bottom of the transport unit.

2 Gently lower the transport unit into its vertical position.
