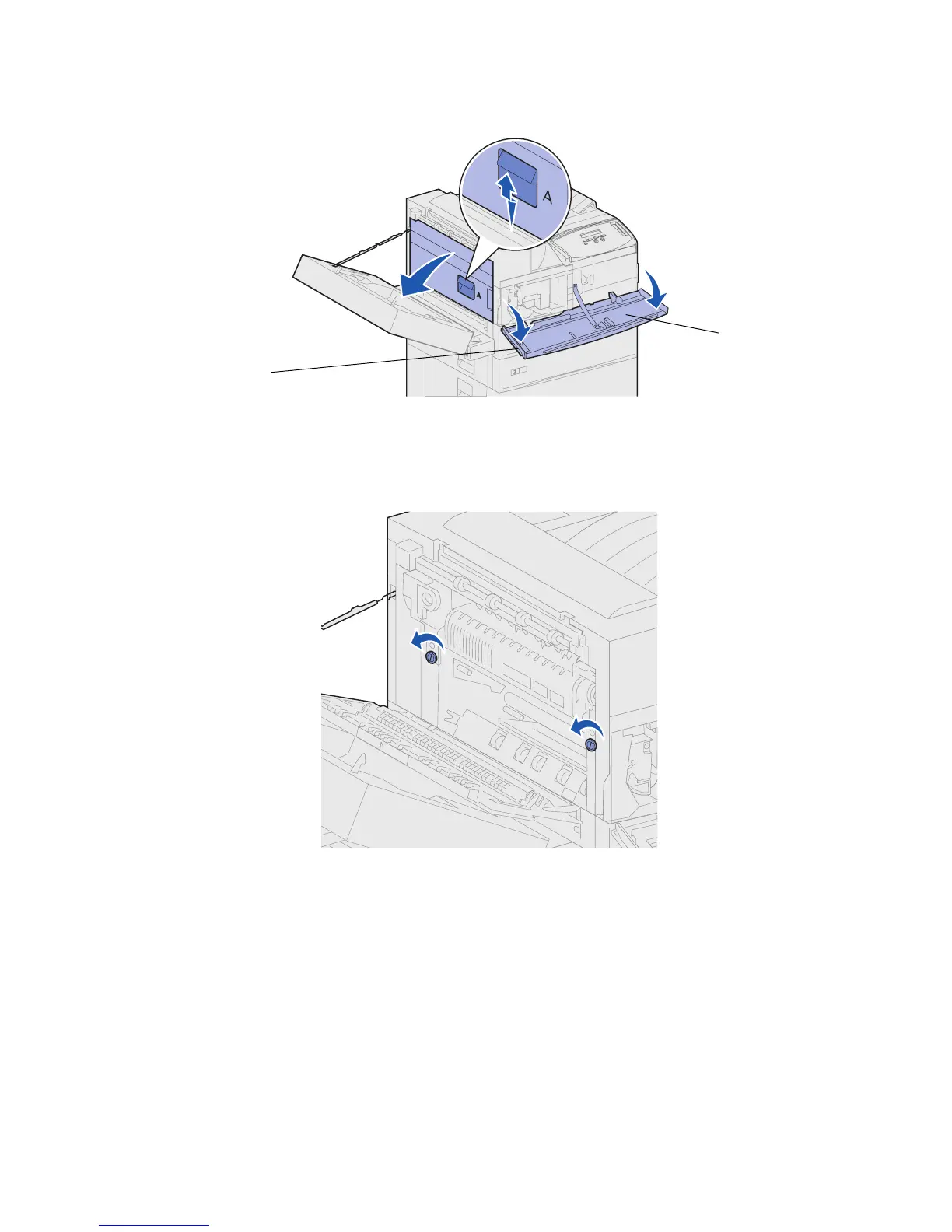

5 Using the handholds located on each side, pull open the printer front door (Door F).

CAUTION: The fuser may be hot. Allow time for it to cool before continuing. Use the handles

on the fuser to remove it.

6 Loosen the two green thumbscrews. They do not come completely out.

Door F

Handhold
