127

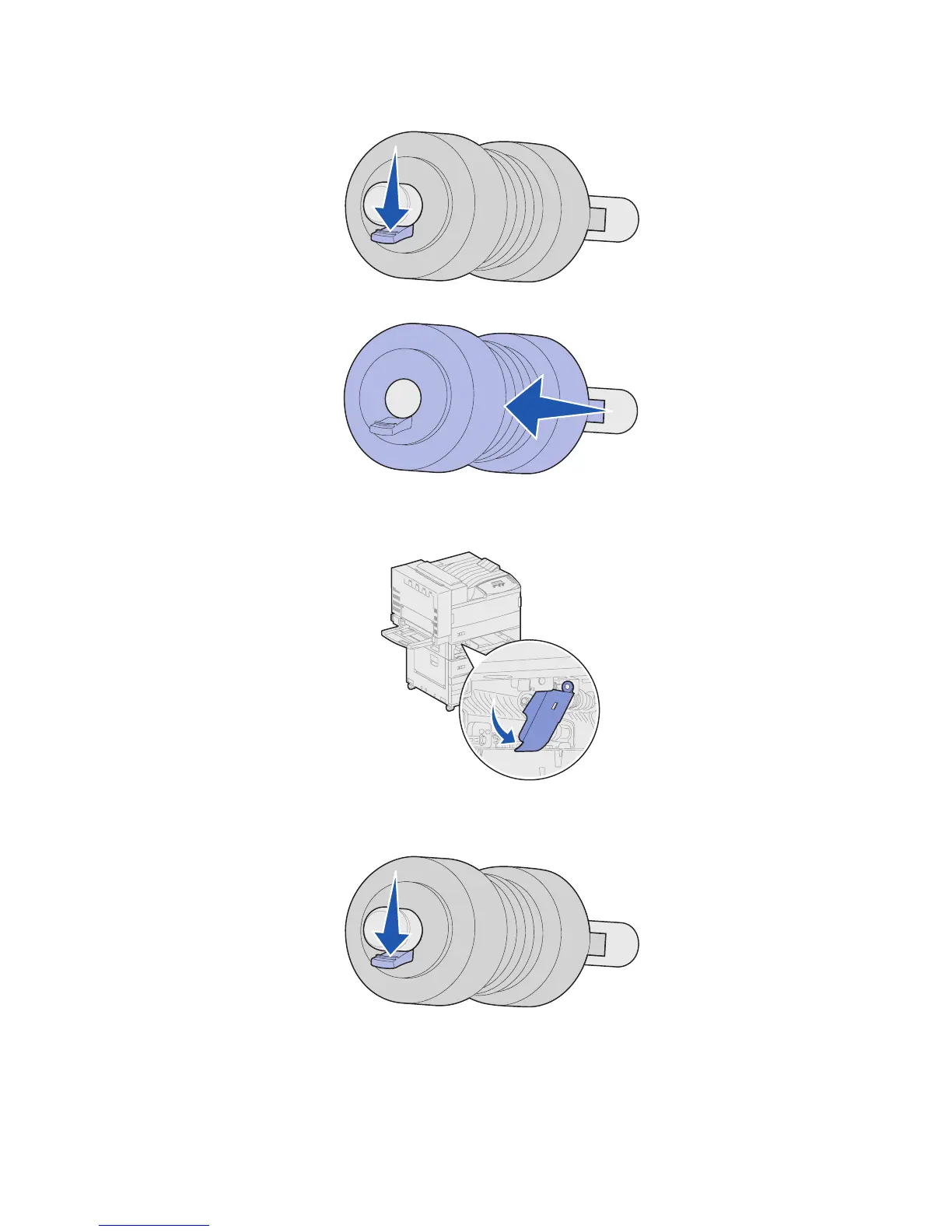

6 Push the tab away from the metal bar.
7 Pull the pick roller straight out.
8 Locate the spring-loaded metal plate in front of the two top pick rollers.
9 Pull the metal plate down and to the right. Hold it in place.
10 Remove the other two pick rollers. Top pick rollers rotate either way to locate the tab.
a Push the tab away from the metal bar.
