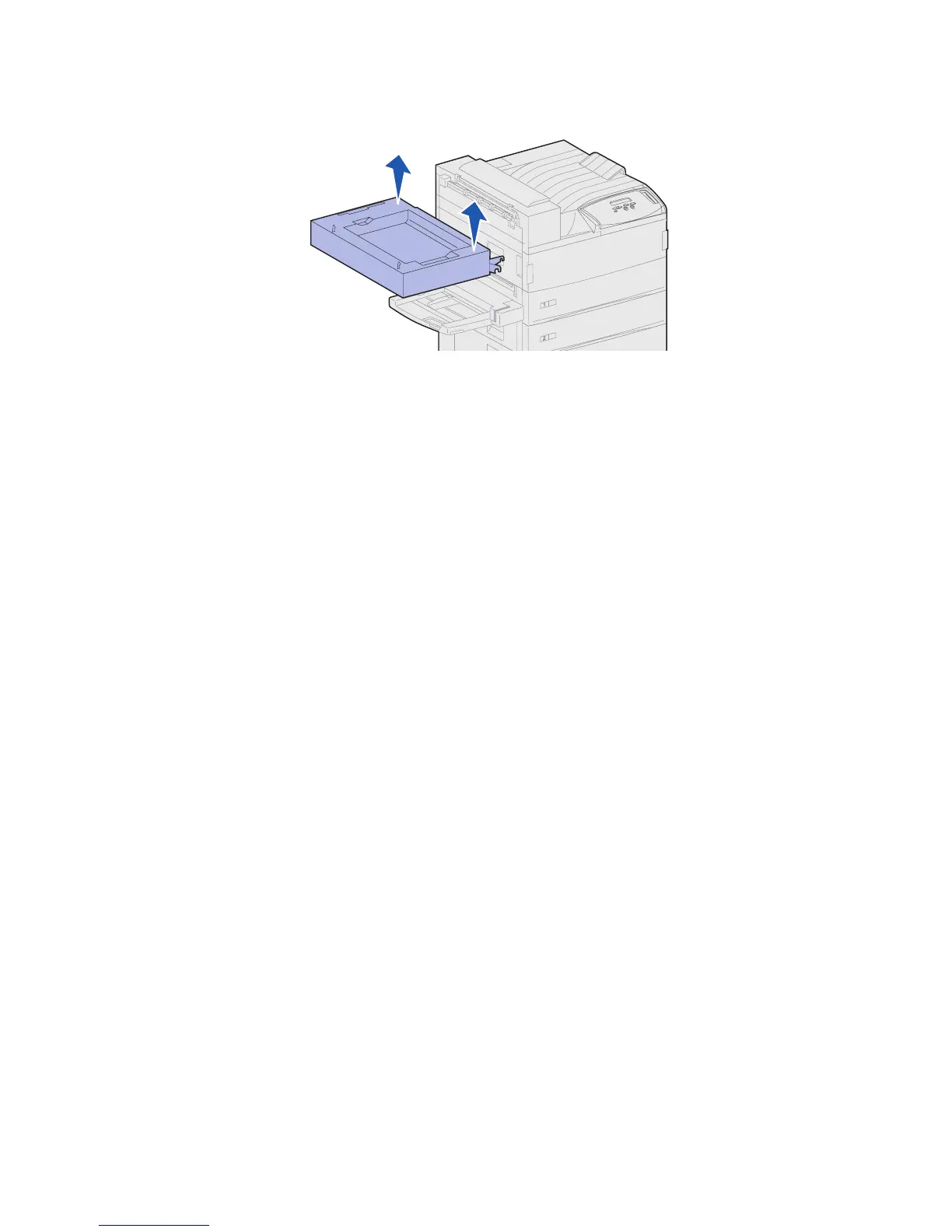

10 Grasp the duplex unit on both sides and lift it straight up.

11 Set the duplex unit aside.

12 Turn the printer on.
