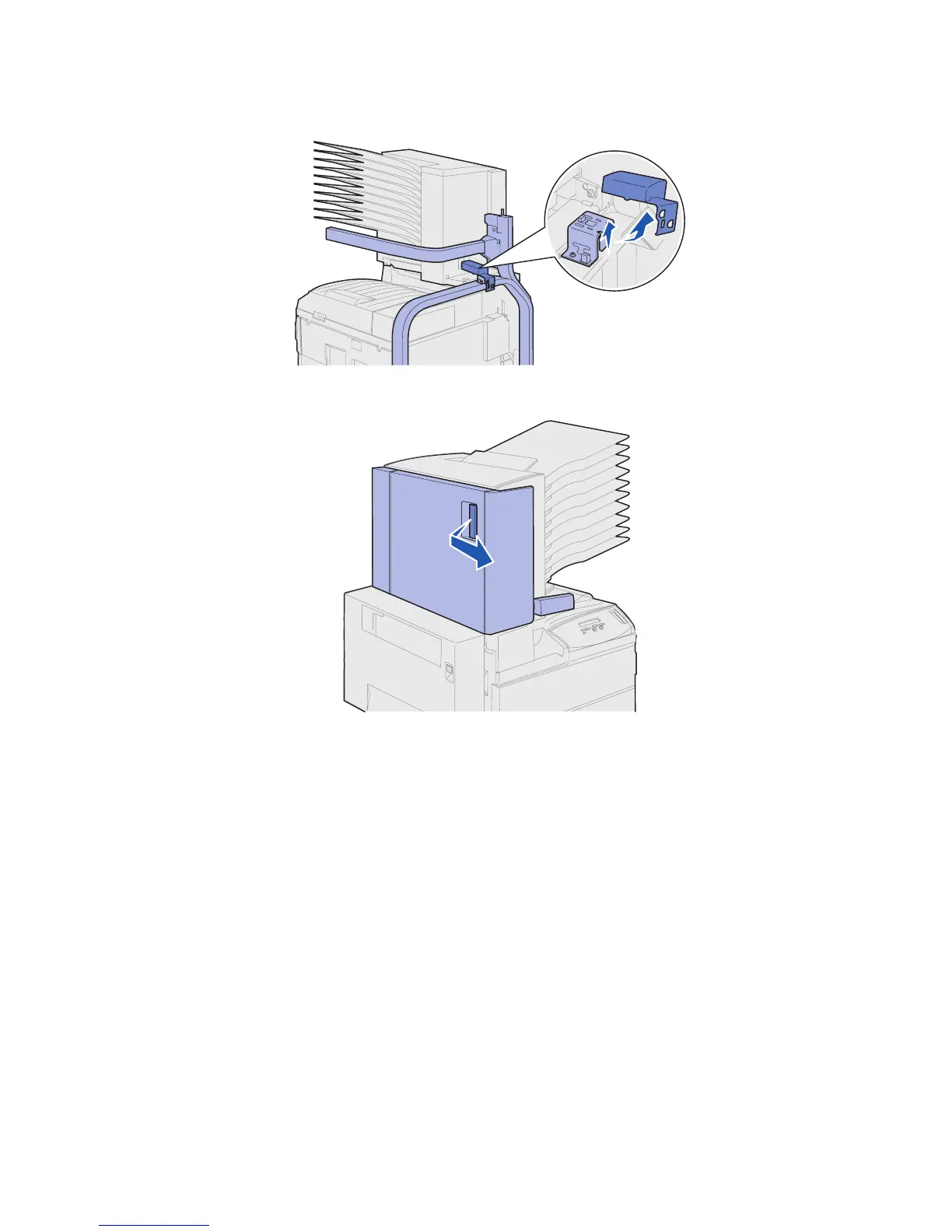

2 Lift the handling tool up and pull it toward you.

3 Open the mailbox door (Door D).

4 Locate the area in the mailbox with two round metal tabs.

5 Hold the handle of the tool as shown and align the two larger openings on the tool with the two

round metal tabs.
