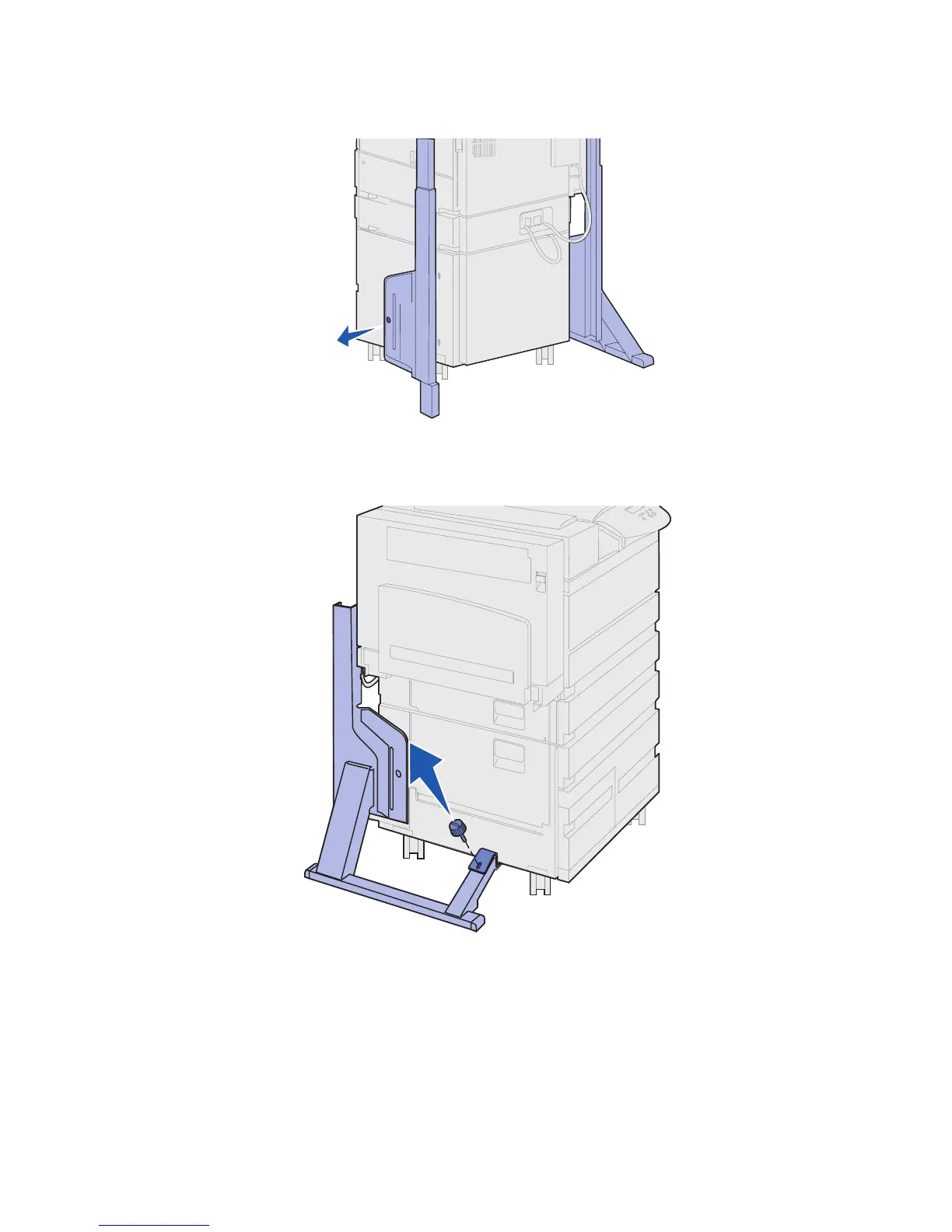

5 Lift up on the right side stand piece, and then pull it off of the printer.

6 Set the right side stand piece aside.

7 Remove the screw on the stabilizer bar.

(Back view of printer)
