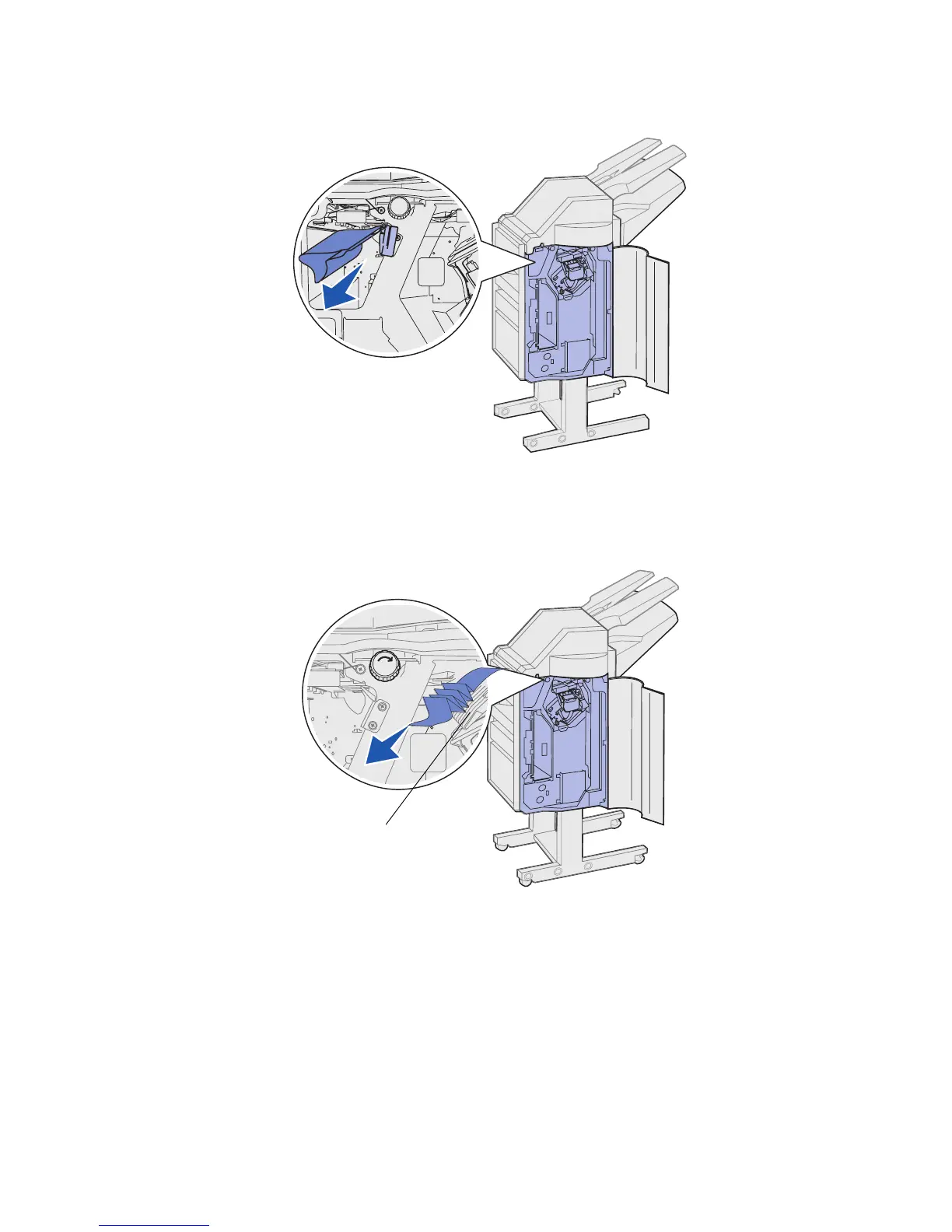

3 Pull the jammed sheet straight out.

If the print media is jammed above the green lever above the stapler:

1 Pull the green lever down and to the right. Hold it out of the way.

2 Pull print media straight out.

Lever
