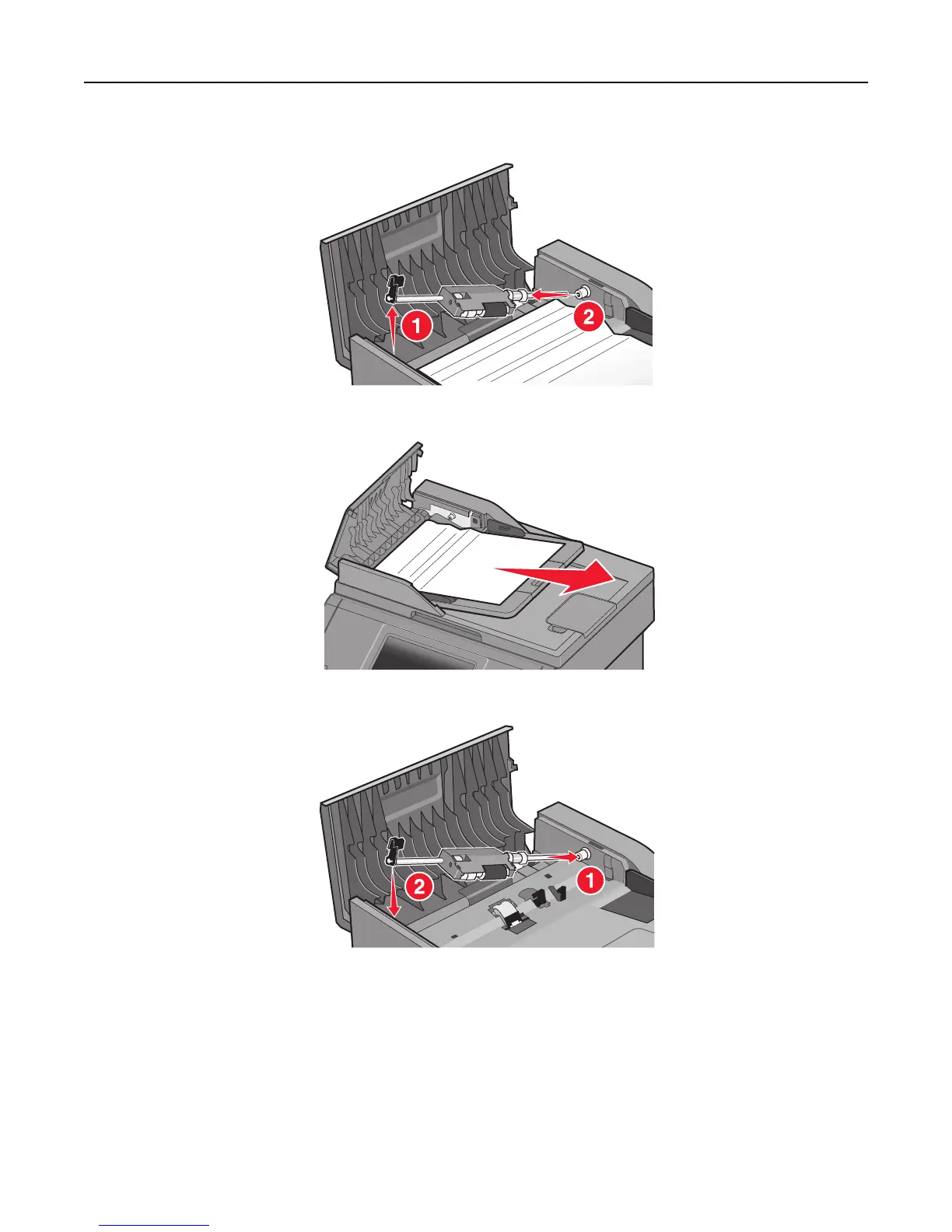

4 Remove the separator roll.

5 Remove the jammed paper.

6 Reinstall the separator roll.

Clearing jams 251
