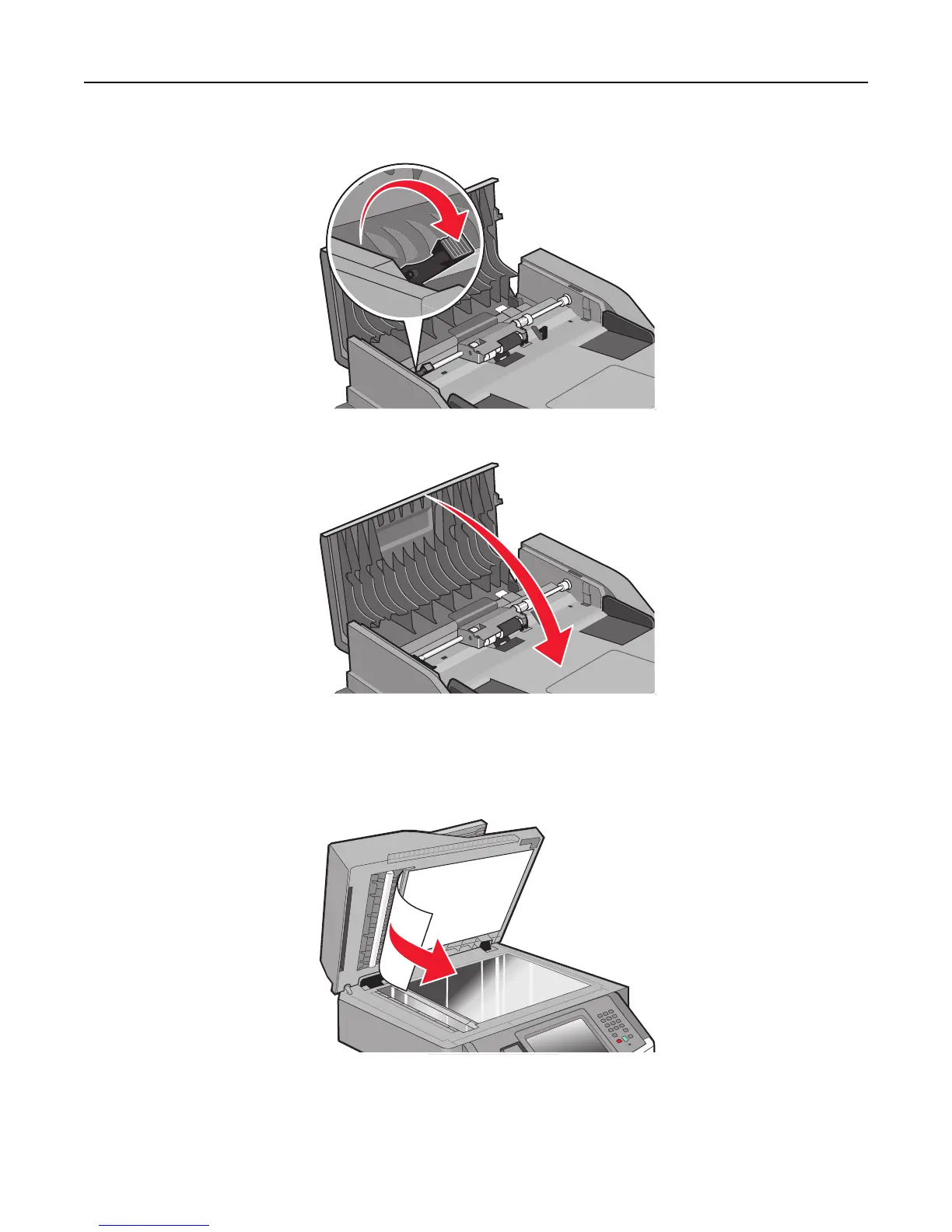

7 Lock the separator roll.

8 Close the ADF cover.

9 Touch Continue.

Clearing ADF jams by lifting the scanner cover

1

Open the scanner cover, and then remove any jammed pages.

2 Touch Continue.

Clearing jams 252
