LG-Ericsson iPECS-MG - KSU Diagram, Exterior and Dimension

iPECS-MG Hardware Description and Installation Manual Issue 1.1
KSU Installation August, 2010
16
4.3 KSU Diagram, Exterior and Dimension

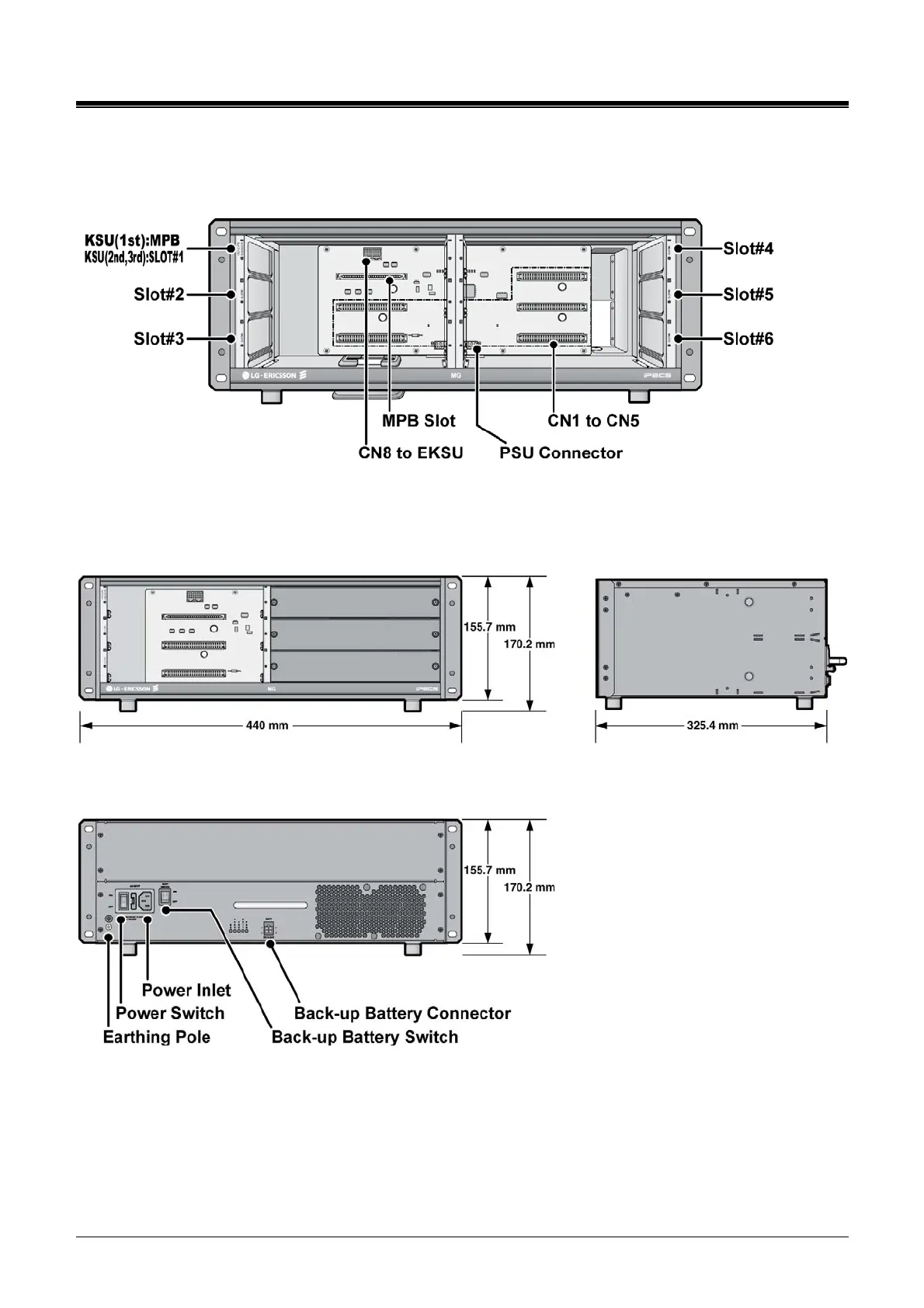

For reference purposes, Figure 4.3-1 shows the exterior and dimensions of the KSU.
Figure 4.3-1 KSU Exte
rior and Dimension
