5.7 Cable Dressing
To provide a neat professional installation, the wiring to the KSU(s) should be dressed. The wiring
cables should be bundled and tie wrapped to the KSU(s) and to the wall or rack.
5.7.1 Wall Mount Wiring
To dress wiring for a Wall mount installation,
1. Ensure all boards are installed and that wiring is complete.
2. Using the supplied Cable Ties, tie all wiring cables and Power cord (if desired) together
in a neat bundle.
3. Using the supplied Cable Ties, tie the bundled cables to a Rack Mount bracket.
4. Dress the cable bundle under the bottom KSU and attach to the wall at regular spacing
back to the wiring termination point.

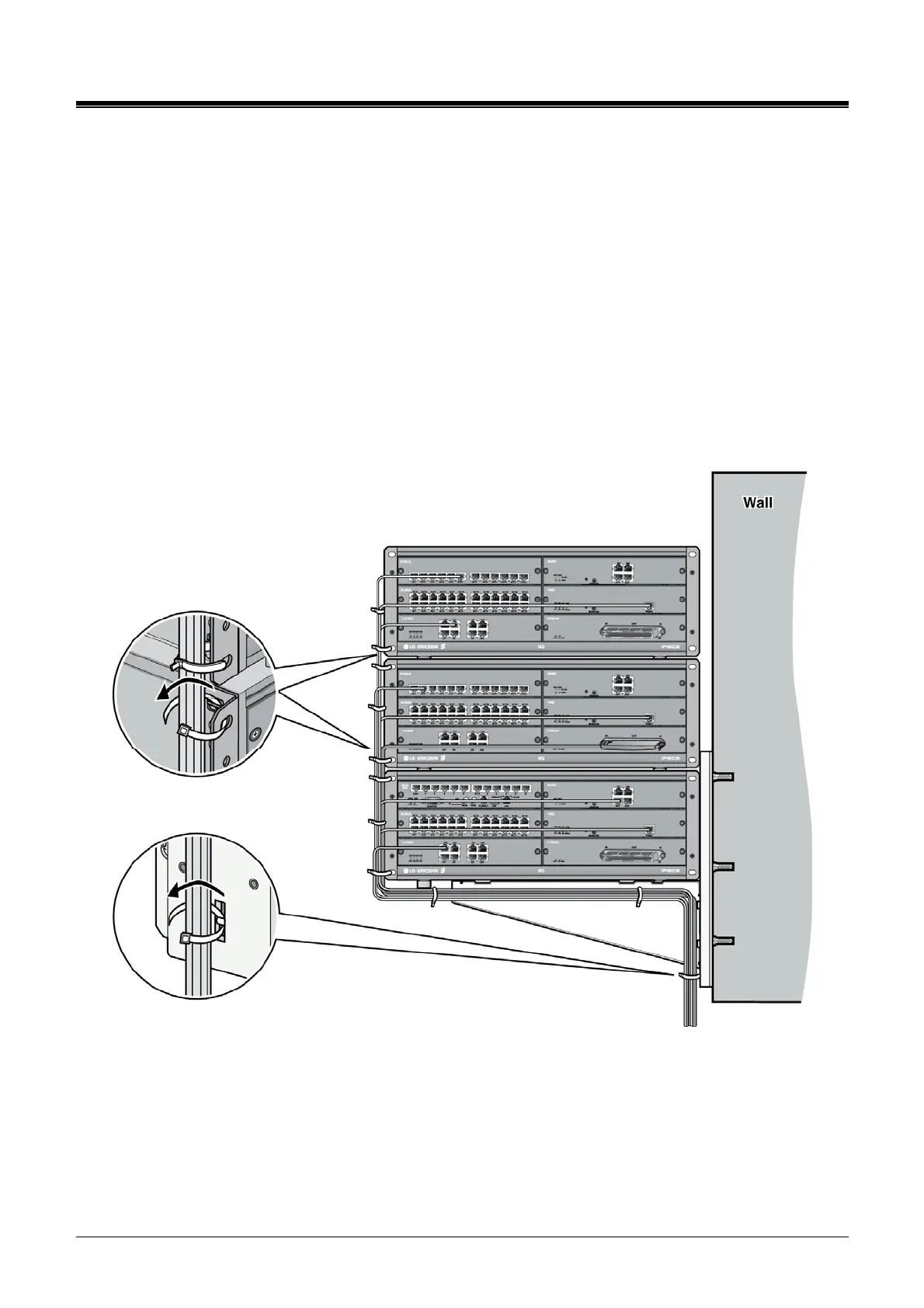

Figure 5.7.1-1 Wall Mount Wiring
