iPECS-MG Hardware Description and Installation Manual Issue 1.1
DECT INSTALLATION August, 2010
44
Referring to the pin-out chart and Figure 5.3.3.3-1 E1-PRIB Connector Wiring Diagram below,
 wire the TX and RX pins of the RJ-45 connector to the digital line termination point at the CSU
using UTP cable.
 tag or number wiring for maintenance.
RJ45, T1-PRI Port
CONNECTOR PIN SIGNAL
1 RX+
2 RX-
4 TX+
5 TX-
RJ45
3,6,7,8 Not used

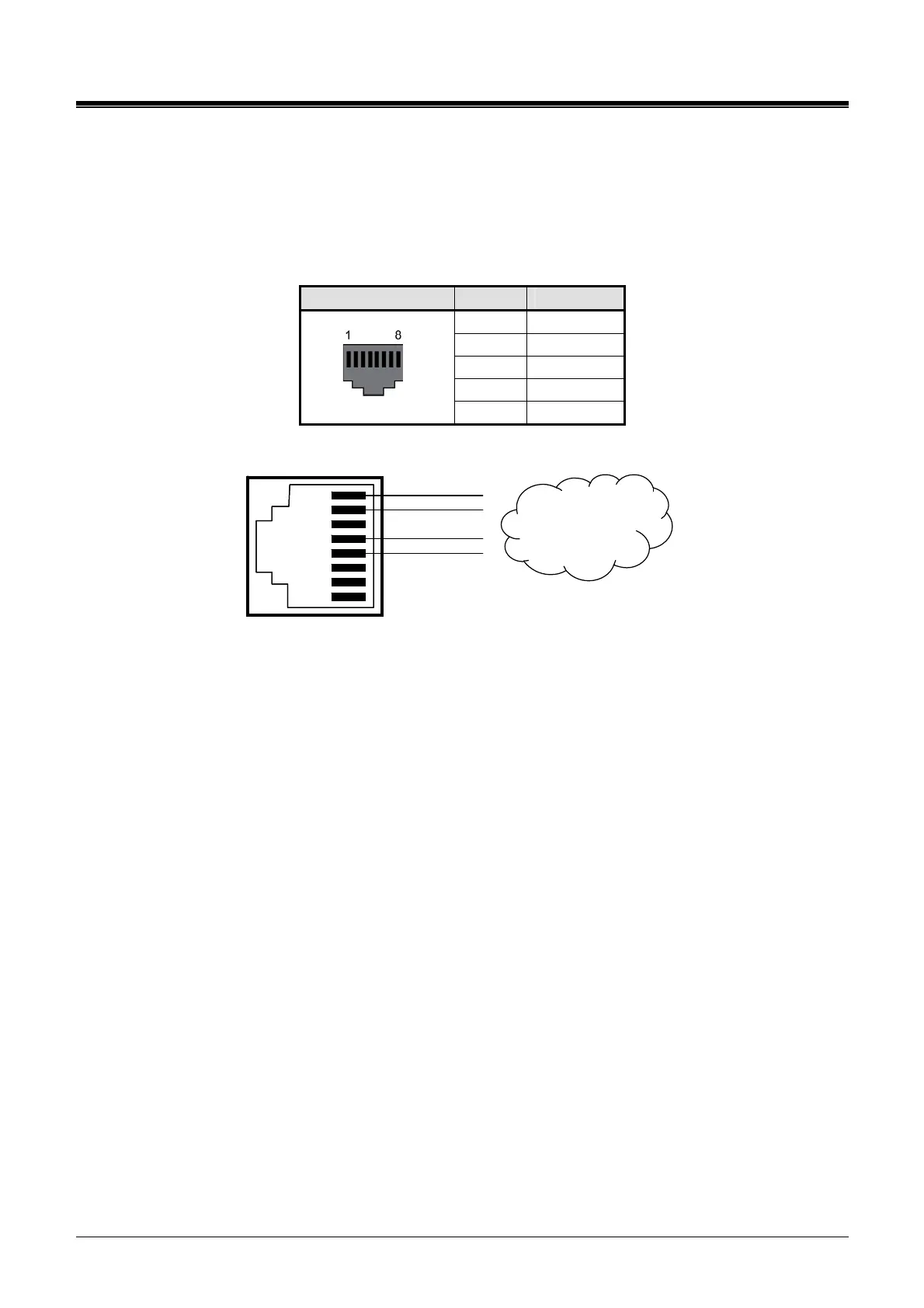

Figure 5.3.4.3-1 T1-PRIB Connector Wiring Diagram
5.3.4.4 Serial Port
The PRIB includes an Audio jack connected to a Serial port. The serial port is used for diagnostic
purposes. For wiring information, refer to section 5.6.
PRIB
1
2
3
4
5
6
7
8
Network
1
2
3
4
5
6
7
8
RX+
RX-
TX+
TX-
TX+
TX-
RX+
RX-
