5.4.4 DTIBC (Digital Telephone Interface Board w/RJ21 connector)
The DTIBC is available in two (2) models, the DTIB12 with 12 Digital Key Telephone Interface ports
and the DTIB24 with 24 DKT ports. The DTIBC is identical to the DTIB except the DKT ports of the
DTIBC are terminated to an RJ21 connector. Each port provides power and signaling to the DKT
over a single wire pair.

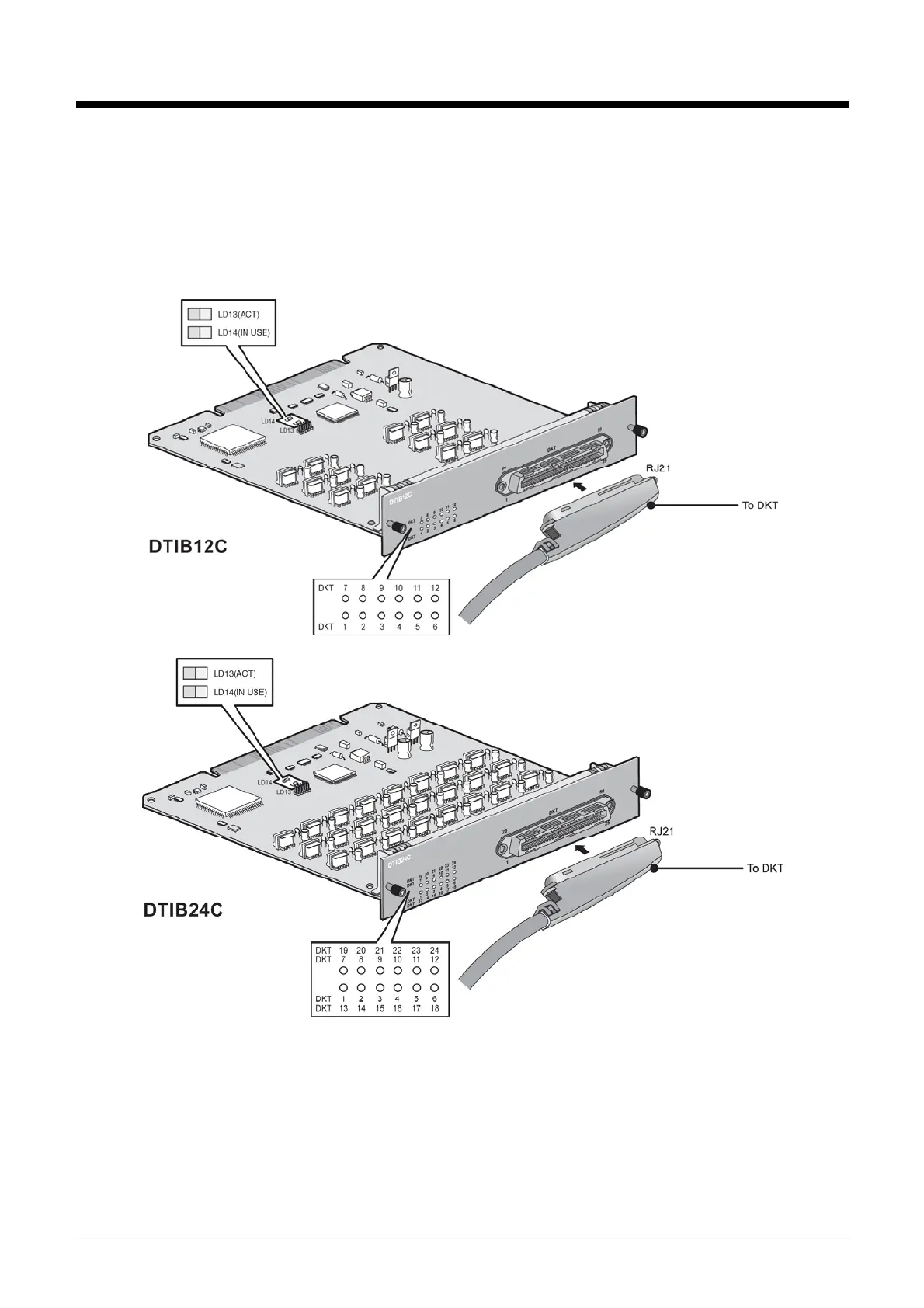

Figure 5.4.4-1 DTIB Digital Telephone Interface Board
