5.4.3 DTIB (Digital Terminal Interface Board w/RJ-45)
The DTIB is available in two (2) models, the DTIB12 with 12 Digital Key Telephone Interface ports
and the DTIB24 with 24 DKT ports. Each port provides power and signaling to the DKT over a single
wire pair. Each DKT port of the DTIB is terminated in an RJ45 connector on the front panel of the
DTIB.

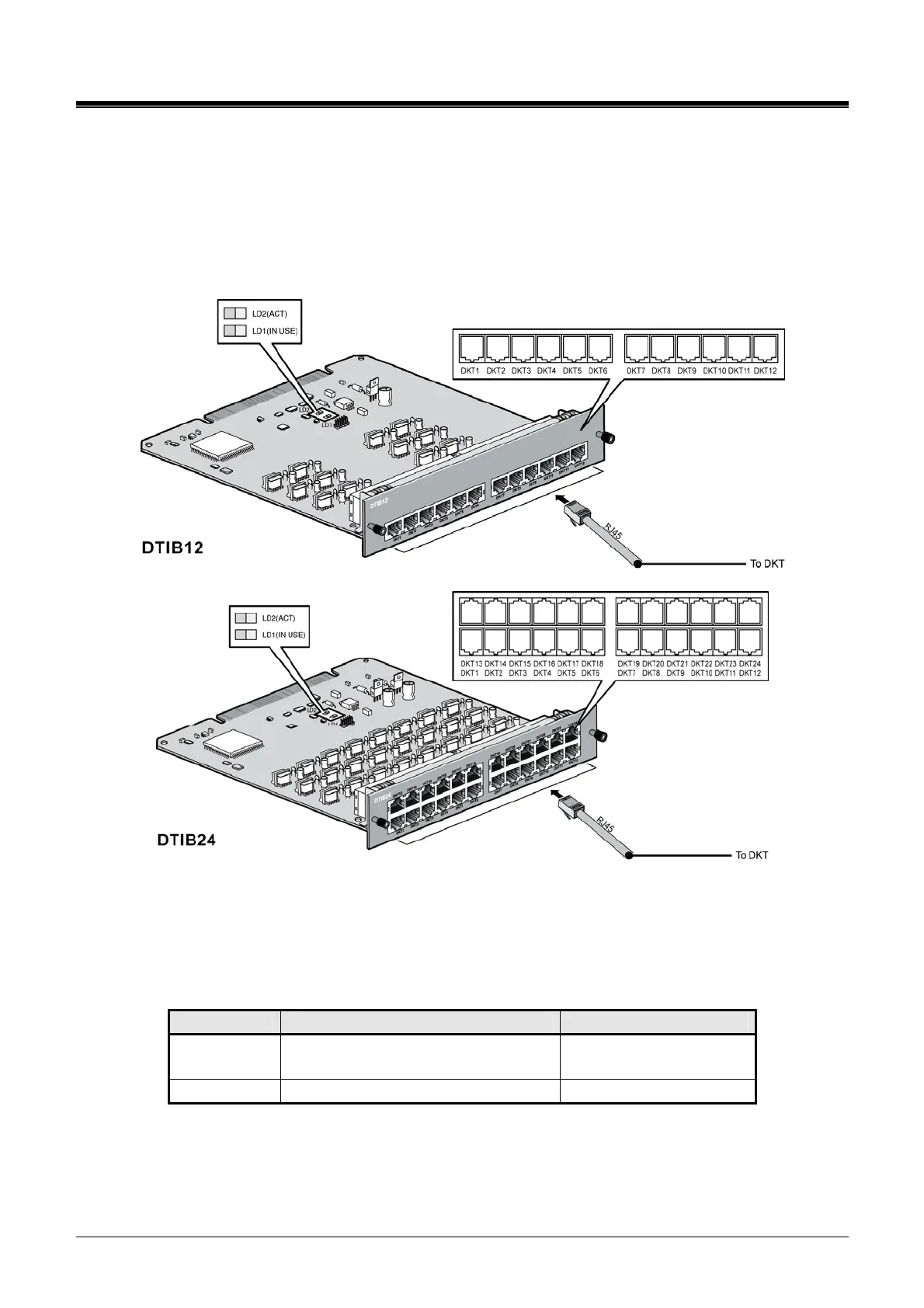

Figure 5.4.3-1 DTIB (Digital Telephone Interface Board)
5.4.3.1 LED Functions
LED Indications
LED FUNCTIONS REMARK
LD1 IN USE
ON: Channel in use,
OFF: All channels Idle
LD2 ACT, Activation or Normal Operating Blink (Blue Color)
