iPECS-MG Hardware Description and Installation Manual Issue 1.1
DECT INSTALLATION August, 2010
74

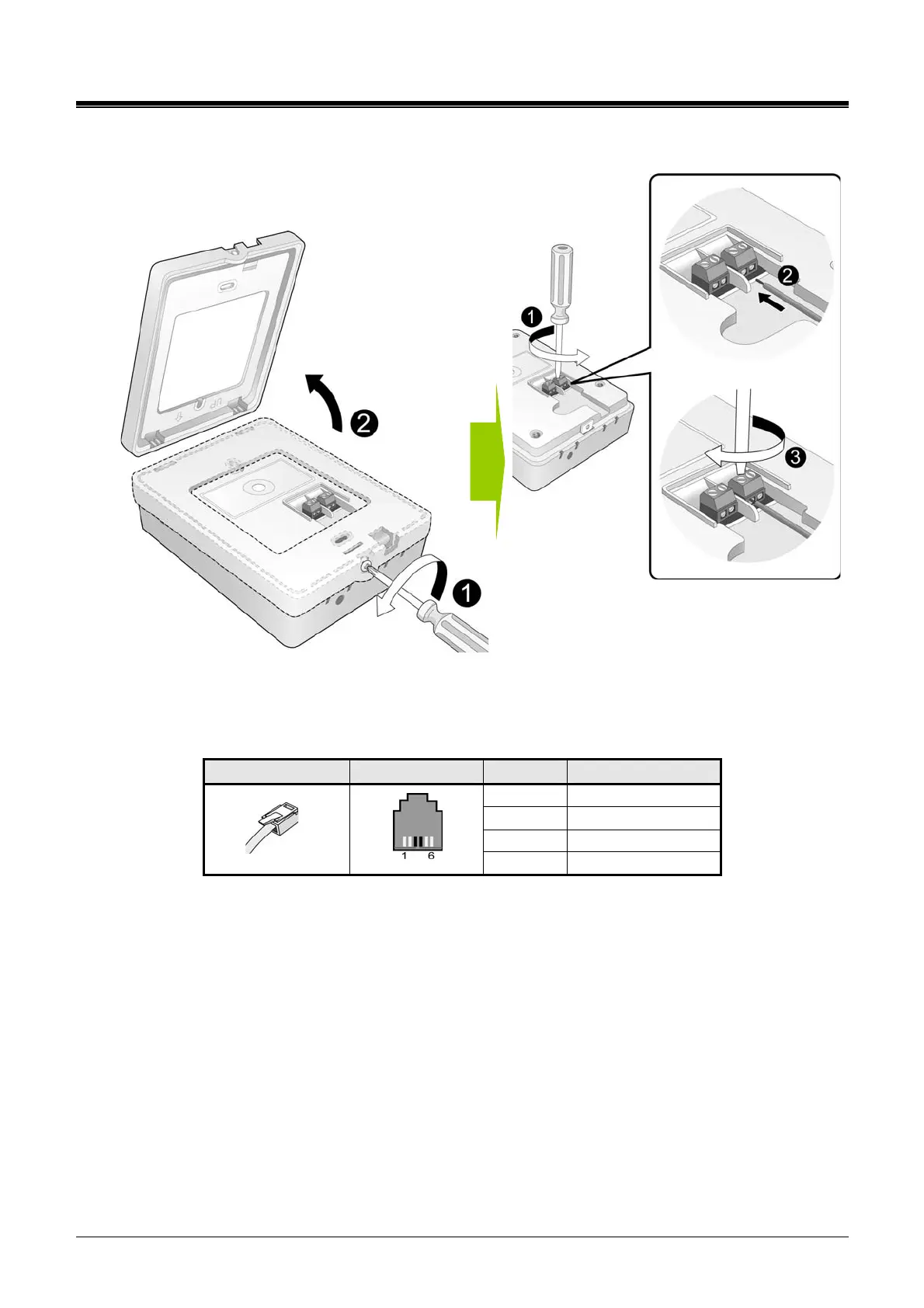

Figure 6.1.3.2-1 Door Phone Box Wiring
LDP-DPB Pin-out Chart
Line Cord CONNECTOR PIN SIGNAL NAME
1,2 Not used
3 Ring
4 Tip
RJ11
5,6 Not used
