Connecting the
speakers
Attaching the speakers to the
unit
Connect the wires hooked up to the speaker
to the unit.
To connect the cable to the unit, press each
plastic nger pad to open the connection
terminals on the unit. Insert the wire and
release the nger pad.
Connect the black end of each wire to the
terminals marked - (minus) and the other end
to the terminals marked + (plus).

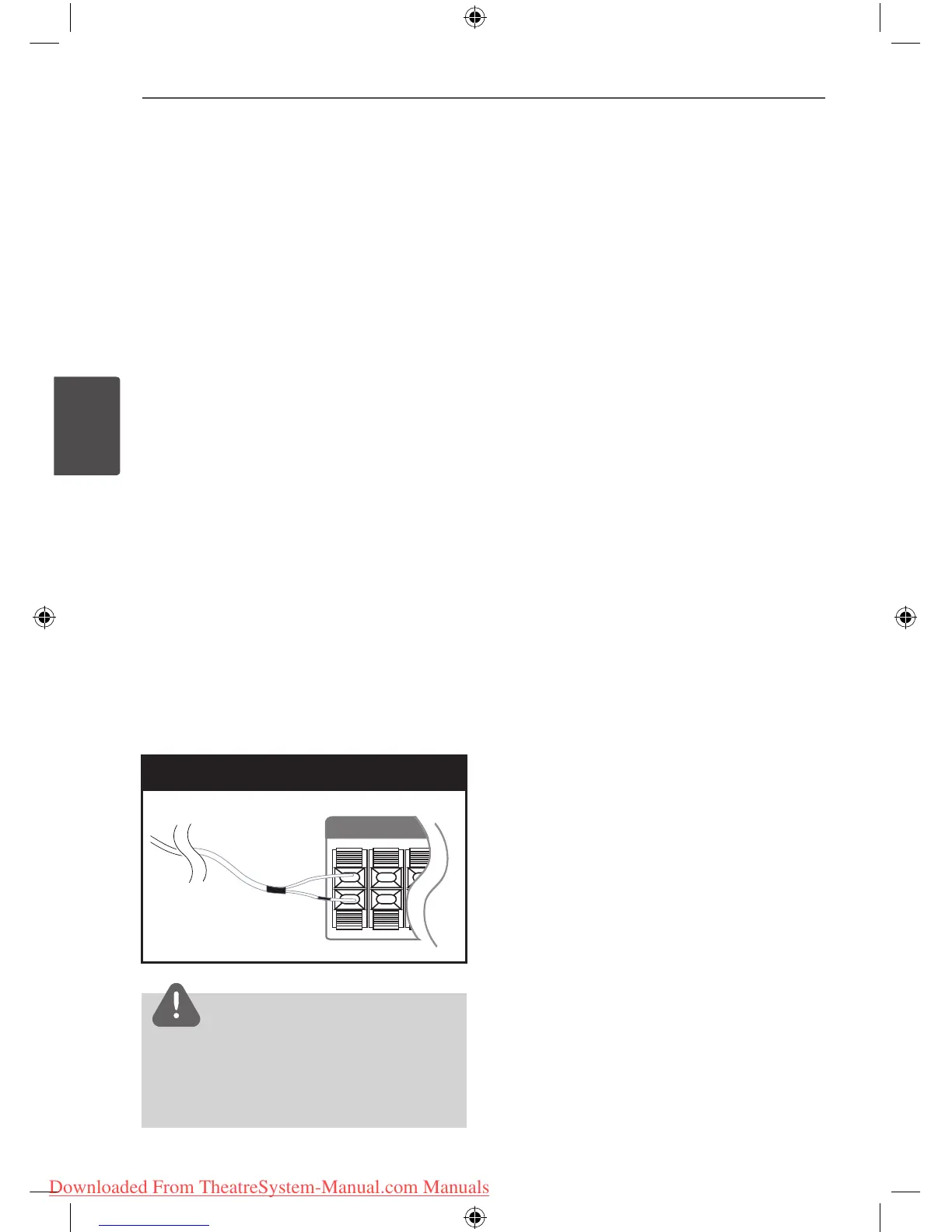

Speaker connection
CAUTION
Be careful to make sure children do not put their
hands or any objects into the *speaker duct.
*Speaker duct : A hole for plentiful bass sound on
speaker cabinet (enclosure).
Positioning the System
The following illustration shows an example of
positioning the system.
Note that the illustrations in these instructions
dier from the actual unit for explanation
purposes.
For the best possible surround sound, all the
speakers other than the subwoofer should be
placed at the same distance from the listening
position (
A
).
A
Front left speaker (L)/
B
Front right speaker
(R):
Place the front speakers to the sides of the
monitor or screen and as ush with the
screen surface as possible.
C
Center speaker: Place the center speaker
above or below the monitor or screen.
D
Surround left speaker (L)/
E
Surround right
speaker (R):
Place these speakers behind your listening
position, facing slightly inwards.
F
Subwoofer: The position of the subwoofer
is not so critical, because low bass sounds
are not highly directional. But it is better
to place the subwoofer near the front
speakers. Turn it slightly toward the center
of the room to reduce the wall reections.
G
Unit
3
Installation
