3-8
COMPONENT ACCESS

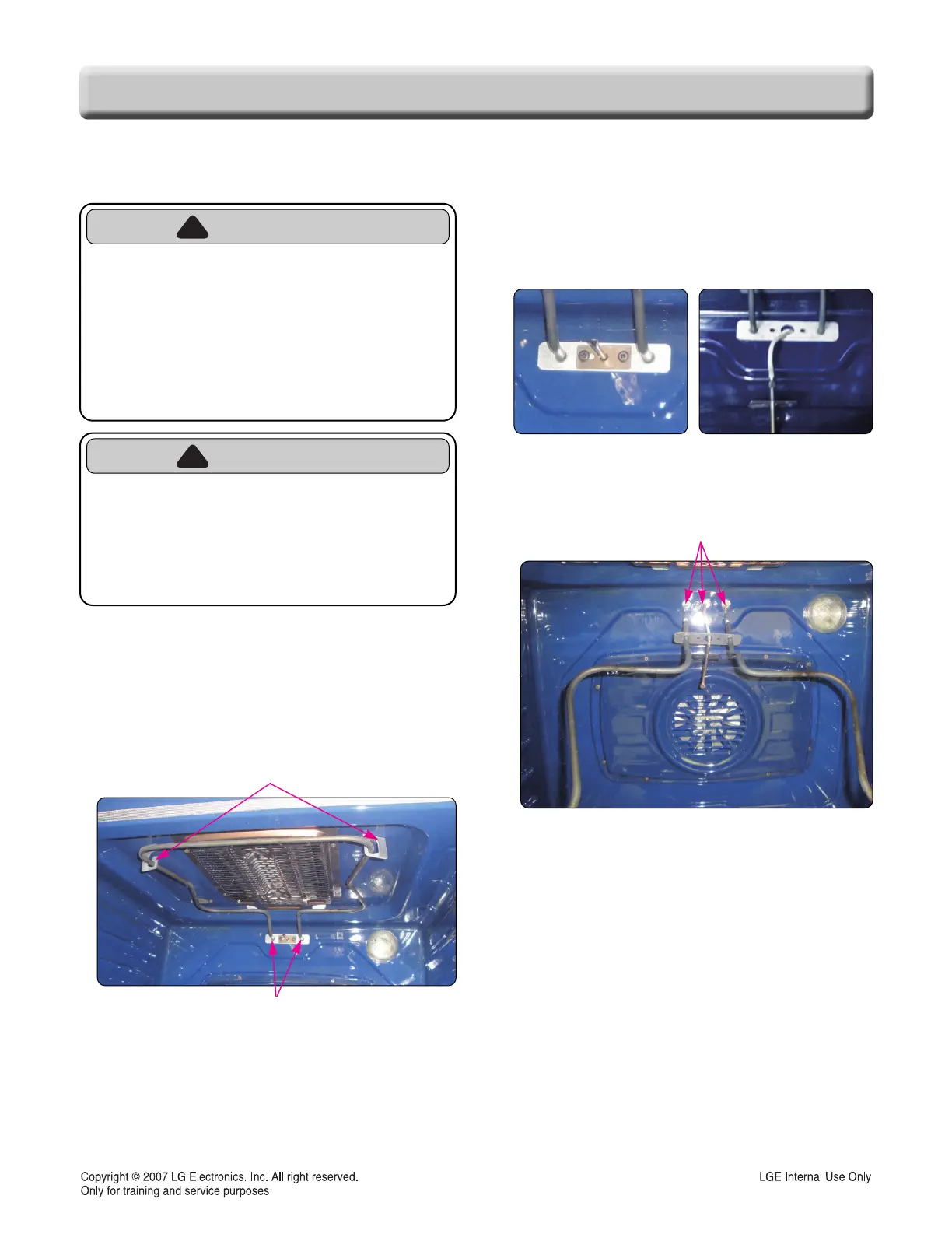

REMOVING THE OUTER BROIL ELEMENT(SHEA
REMOVING THE OUTER BROIL ELEMENT(SHEA
THED HEA
THED HEA
TER)
TER)
1. Turn off the electrical supply going to the range.
2. Open the oven door and remove the racks from
inside the oven.
3. To remove the outer broil element:
a) Remove the 4 screws from the front and rear
brackets.
b) Pull the element forward so that you can
access the terminals and disconnect the wires.
* 2 screws of the rear bracket do not only fasten
broil heater’s rear bracket but also a thermistor.
While servicing broil elements, the thermistor also
should be disassembled.
2 upper bracket screws
2 front bracket screws
3 terminals(Broil heater/thermistor)
WARNING
• DISCONNECT power supply cord
from the outlet before servicing.
• Replace all panels and parts before
operating.
• RECONNECT all grounding devices.
- Failure to do so can result in severe personal
injury, death or electrical shock.
CAUTION
• Be careful when you work on the
electric range handling the sheet
metal part.
- Sharp edge may be present and you can cut
yourself.
To Next Page
