3-18
COMPONENT ACCESS

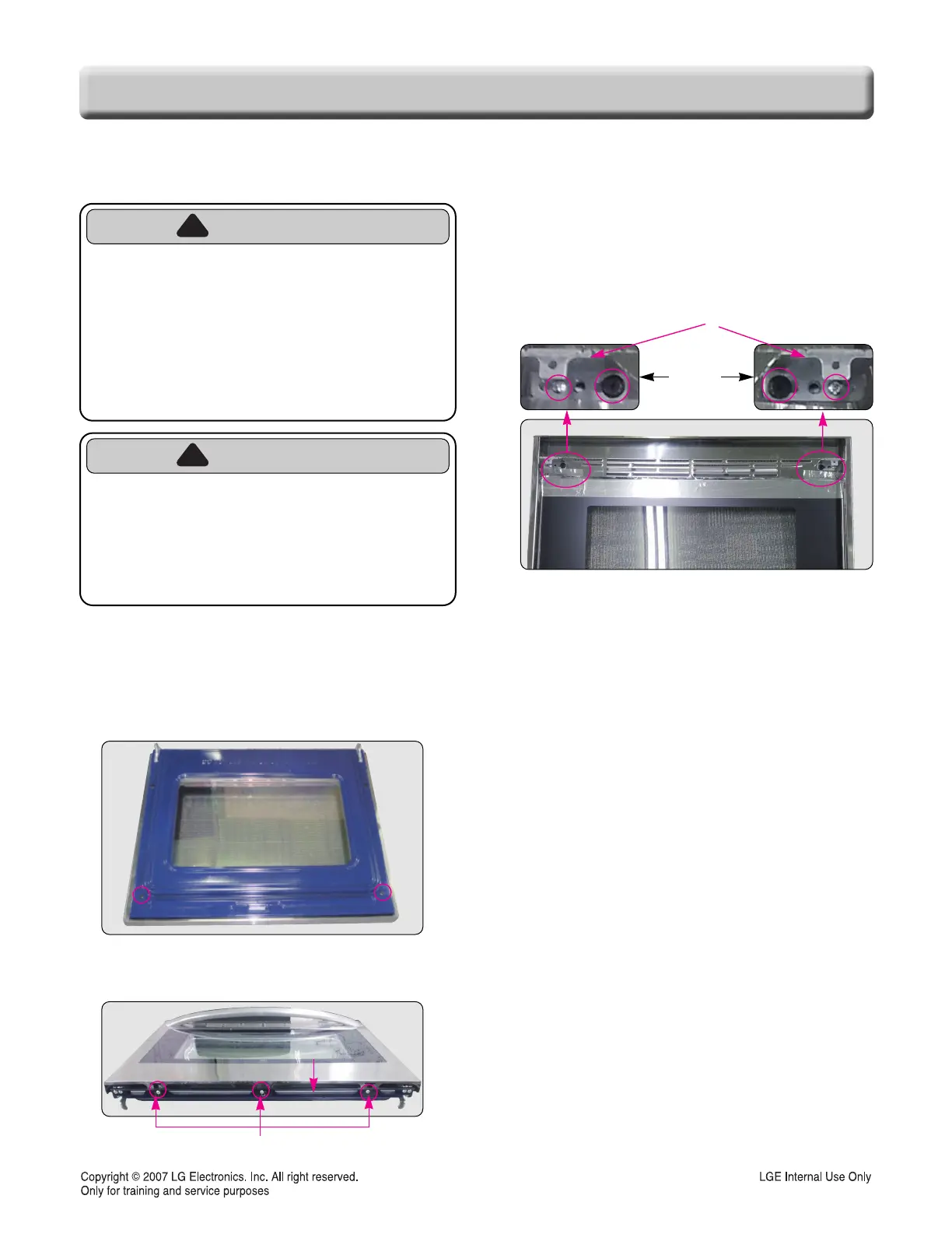

REMOVING THE OVEN DOOR HANDLE
REMOVING THE OVEN DOOR HANDLE
1. Remove the oven door from the range
(See page 3-17 for the procedure).
2. Place the oven door on a padded work surface
with the front glass facing down.
3. Remove 2 screws.
4. Turn the door over. Remove 3 screws from the
door cover assembly and detach the bracket
5. Lift the door cover assembly out and put it down.
6. To remove the door handle for stainless models.
- Remove 4 screws from door bracket and the
handle can be detached from the door cover
assembly.
REASEMBLY NOTE: When you reinstall the
insulation around the oven door glass, make sure
that the insulation is not visible in the glass after the
door is reassembled.
Handle
screws
Door bracket
Door Cover assembly
3 bottom liner screws
Bracket
WARNING
• DISCONNECT power supply cord
from the outlet before servicing.
• Replace all panels and parts before
operating.
• RECONNECT all grounding devices.
- Failure to do so can result in severe personal
injury, death or electrical shock.
CAUTION
• Be careful when you work on the
electric range handling the sheet
metal part.
- Sharp edge may be present and you can cut
yourself.
To Next Page
