LG LRE3085ST - Dual Surface Unit(LF, RF)

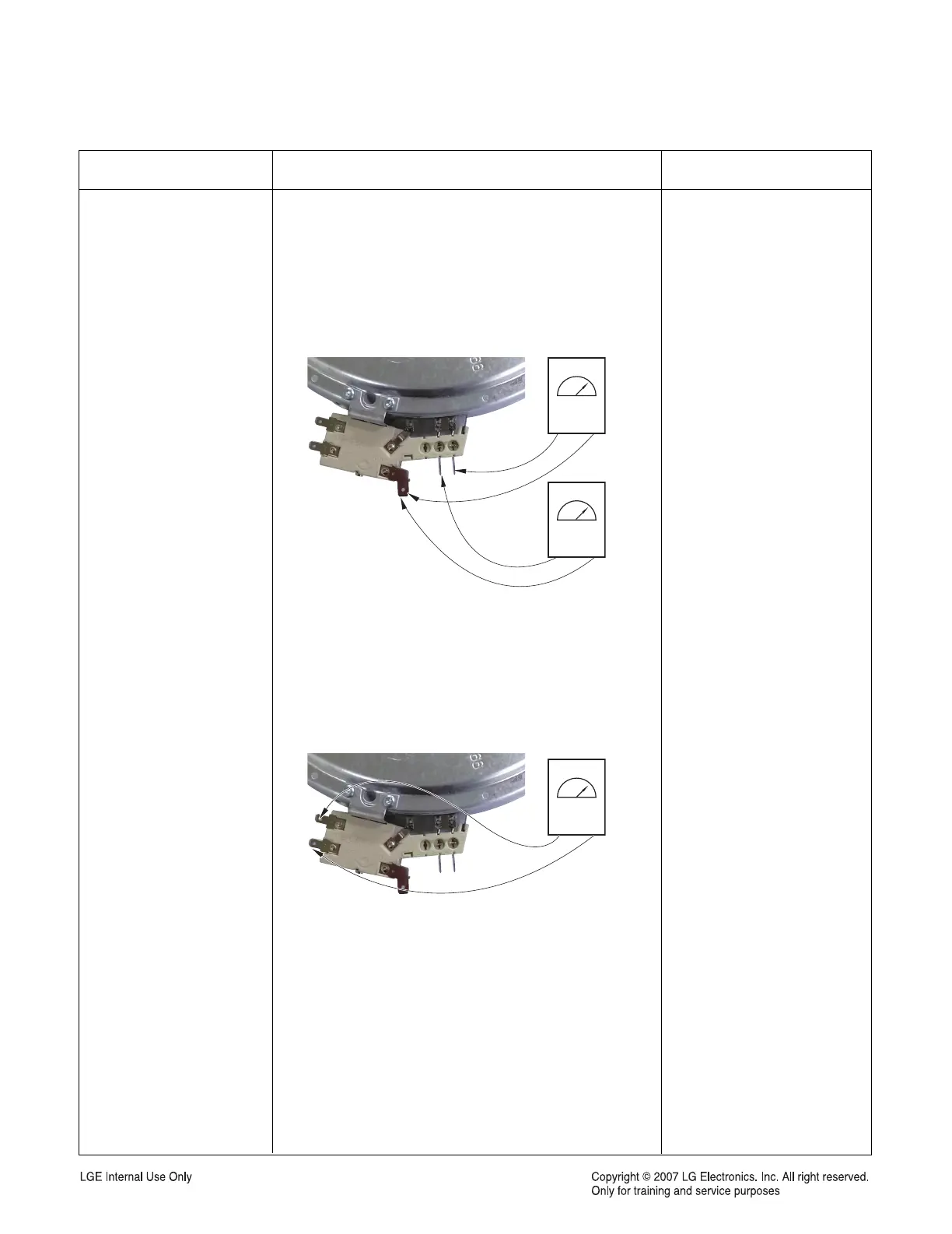

1. Refer to page 3-6 for the servicing procedure
2. Set the Multiple meter scale to the R x1
3. Disconnect wires from cook-top elements
4. Touch the ohmmeter test leads to the (4 & 2A)
and (3 & 2A) the meter should indicate :
- (4 & 2A)
󳥡 41 Ω ± 10%
- (3 & 2A) 󳥡 32 Ω ± 10%
5. Touch the ohmmeter test leads to limiter
terminals 1B and 2B.
With the temperature below 150˚F, the meter
should indicate an open circuit(infinite).
With the temperature above 150˚F, the meter
should indicate continuity (0 Ω).
4-6
Dual surface unit:
Left Front(LF)
Right Front (RF)
Element
Components Test procedures Results
Normal: Approximately 41 Ω
Normal: Approximately 32 Ω
Below 150˚F
󳥡 open circuit(infinite).
Above 150˚F
󳥡 continuity (0 Ω)
3
4
2A
1B
2B
