LG LRE3085ST - Control System Composition; Wiring Diagram and Key Matrix

5-1
COMPOSITION OF CONTROL
W
W

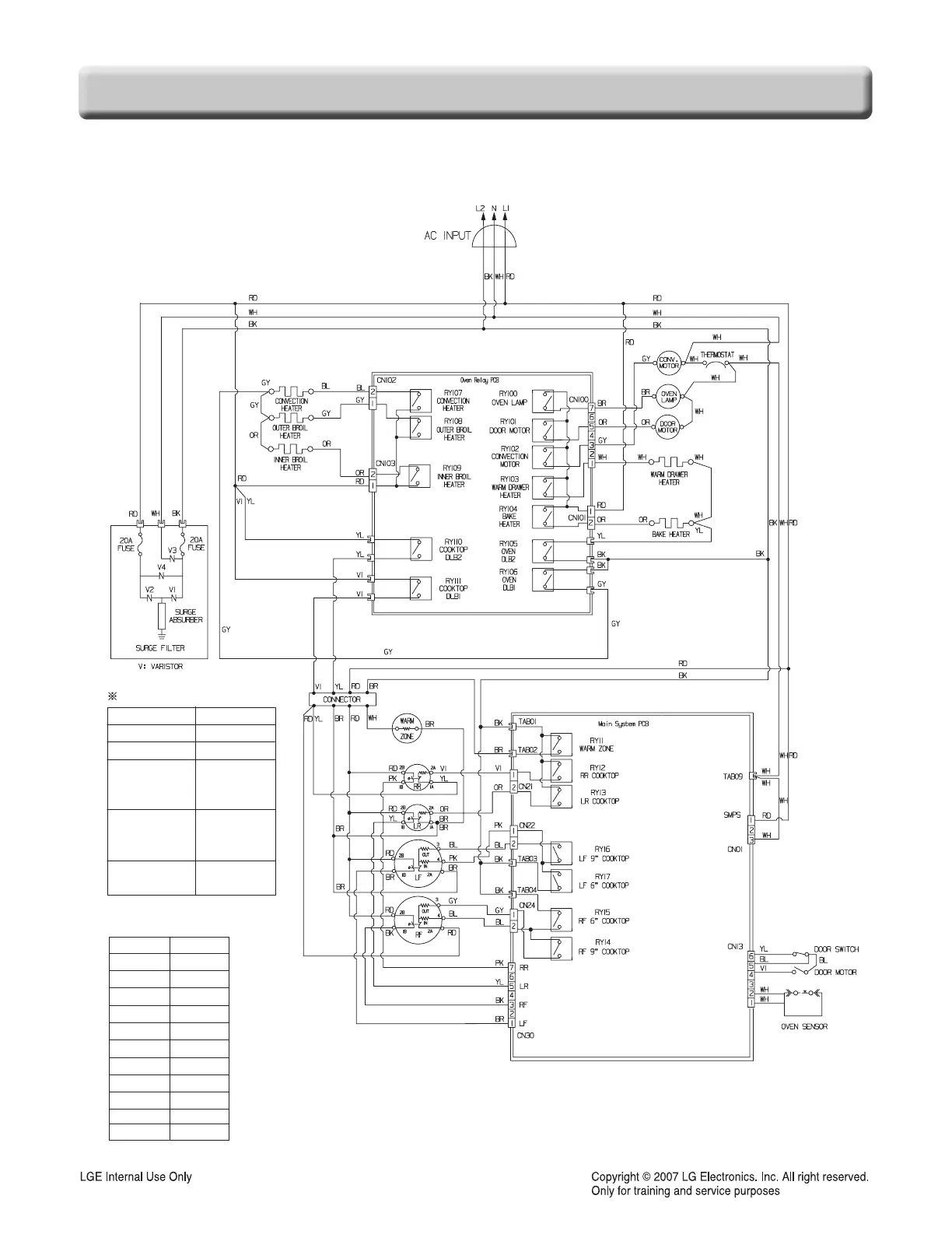

iring Diagram
iring Diagram
RADIANT COOK-TOP
Wattage
RR:1200W approx.47
LR:1200W approx.47
RF:
1400W(Inner) approx.41
1800W(Outer) approx.32
WARM ZONE
:100W approx.570
LF:
1400W(Inner) approx.41
1800W(Outer) approx.32
WIRE COLORS
< TABLE 1 >
SYMBOL COLOR
WH WHITE
BK BLACK
RD RED
YL YELLOW
PK PINK
BL BLUE
BR BROWN
GN GREEN
GY GRAY
OR ORANGE
VI VIOLET
For Model : LRE3085ST /00
