5-2

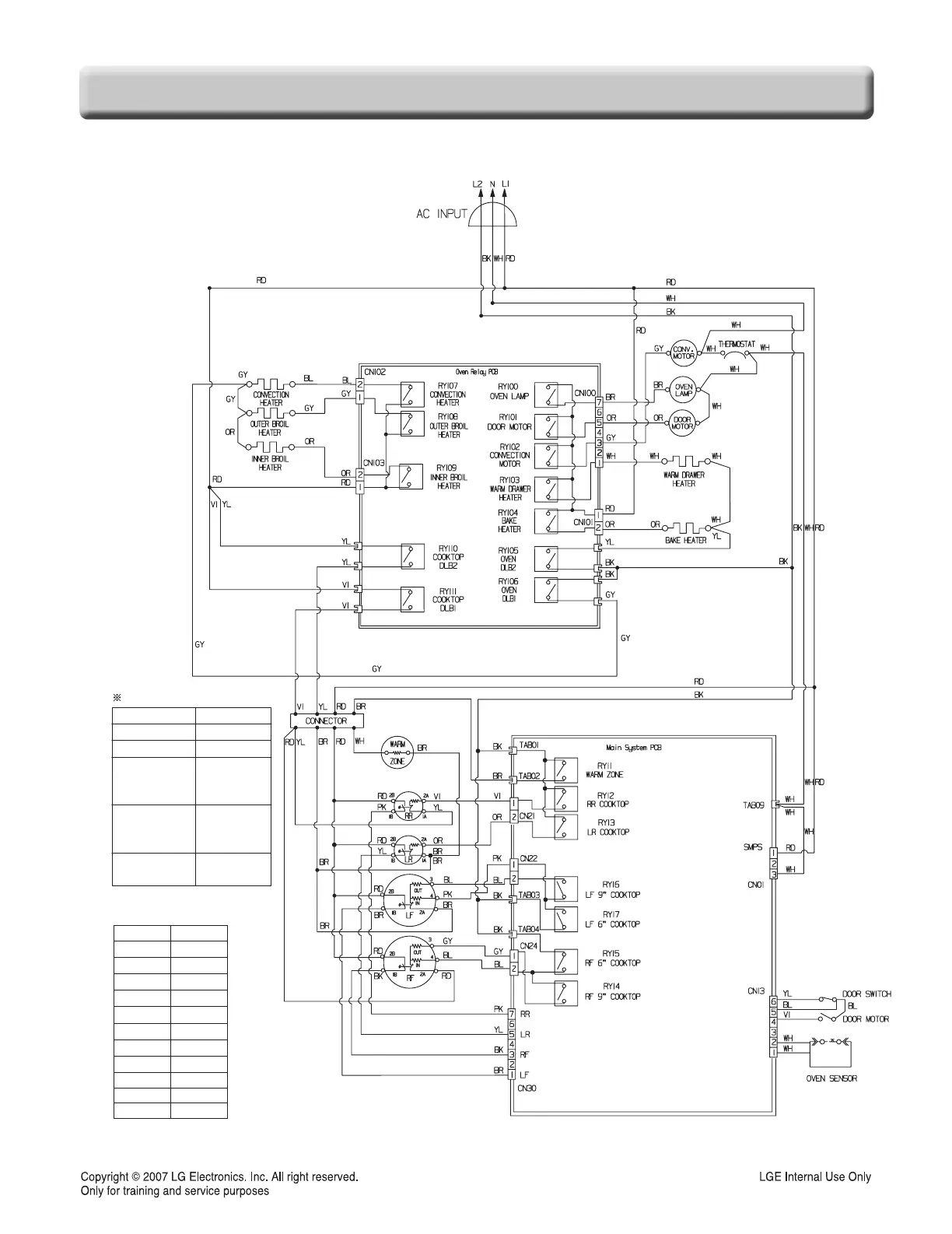

COMPOSITION OF CONTROL
W
W
iring Diagram
iring Diagram
RADIANT COOK-TOP
Wattage Ω
RR:1200W approx.47Ω
LR:1200W approx.47Ω
RF:
1400W(Inner) approx.41Ω
1800W(Outer) approx.32Ω
WARM ZONE
:100W approx.570Ω
LF:
1400W(Inner) approx.41Ω
1800W(Outer) approx.32Ω
WIRE COLORS
< TABLE 1 >
SYMBOL COLOR
WH WHITE
BK BLACK
RD RED
YL YELLOW
PK PINK
BL BLUE
BR BROWN
GN GREEN
GY GRAY
OR ORANGE
VI VIOLET
For Model : LRE3085ST /01
