LG LRE3085ST - Schematic Diagrams; Overall Wiring and Strip Circuits

12-1
NOTE:Schematic diagram shows door
switch In the cook position with the oven
door open and elements off.
WARNING
POWER MUST BE
DISCONNECTED BEFORE
SERVICING THE APPLIANCE
RADIANT COOK-TOP
Wattage Ω
RR:1200W approx.47Ω
LR:1200W approx.47Ω
RF:
1400W(Inner) approx.41Ω
1800W(Outer) approx.32Ω
WARM ZONE
:100W approx.570Ω
LF:
1400W(Inner) approx.41Ω
1800W(Outer) approx.32Ω
WIRE COLORS
< TABLE 1 >
SYMBOL COLOR
WH WHITE
BK BLACK
RD RED
YL YELLOW
PK PINK
BL BLUE
BR BROWN
GN GREEN
GY GRAY
OR ORANGE
VI VIOLET

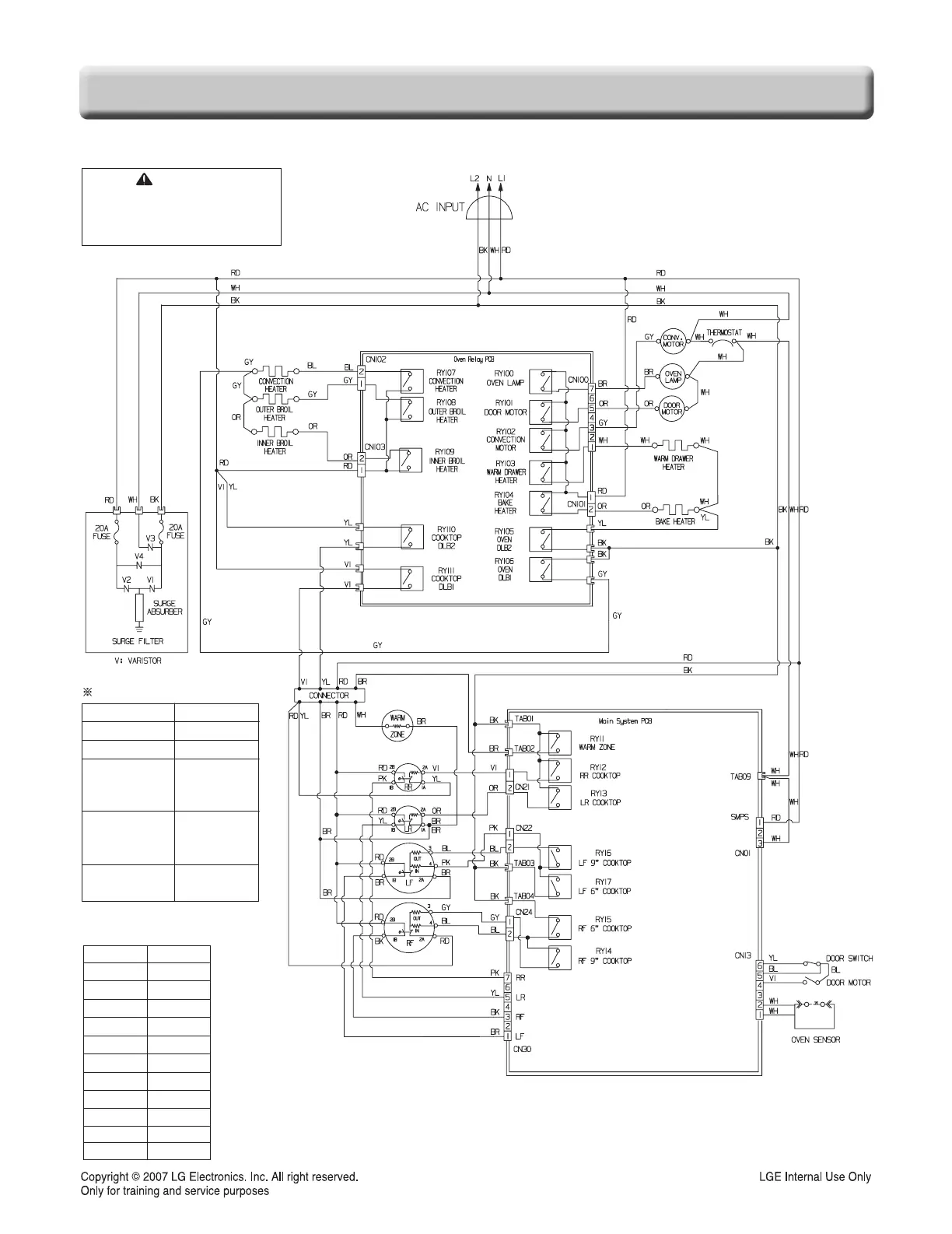

SCHEMATIC DIAGRAM
For Model : LRE3085ST /00
