1. Unplug range or disconnect power.
2. Pull the range out of its mounting location so that
you can access the rear of the unit.
3. Remove lamp, controller and back cover
(See the page 3-2)
4. Remove 4 screws and a powercord.
5. Remove 4 screws and detach the bake heater
cover from the range. Disconnect 3 wiring(2 bake
heater receptacle, 1 drawer heater connector).
6. Bend a insulation ceramic wool up and bend 2
flanges up.
3-11
COMPONENT ACCESS
7. Carefully pull the hidden bake element out of the
range.
8. After servicing the heater, when re-assembling
parts, be careful of the drawer
harness/connector. The hole for drawer harness
is different from 2 holes for bake heater.
If using a same hole, drawer harness and heater
can touch and drawer harness can be damaged.

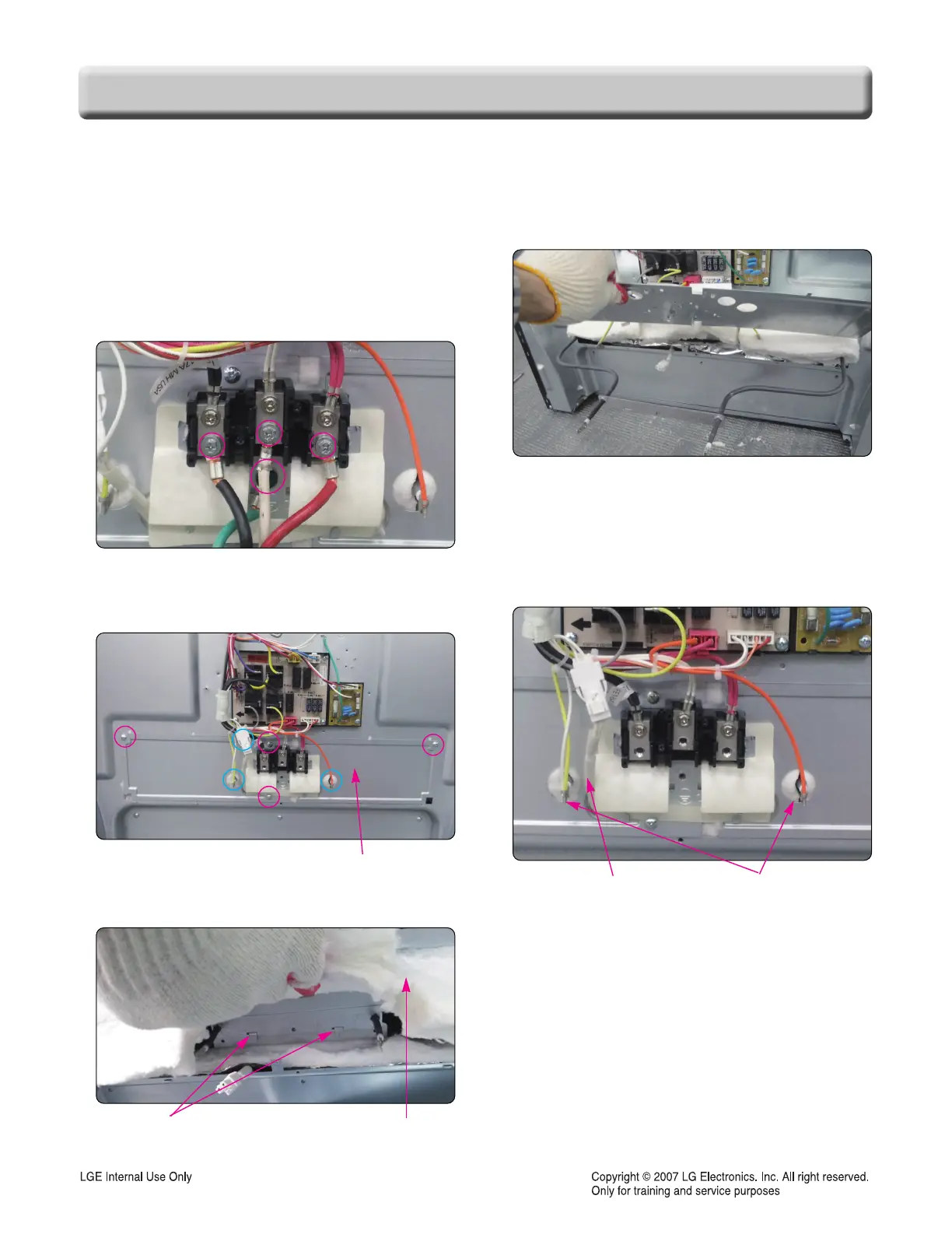

REMOVING THE HIDDEN BAKE ELEMENT
REMOVING THE HIDDEN BAKE ELEMENT
Bake Heater Cover
Insulation ceramic wool
2 flanges
Holes for the heater
Hole for the drawer harness
