COMPONENT ACCESS

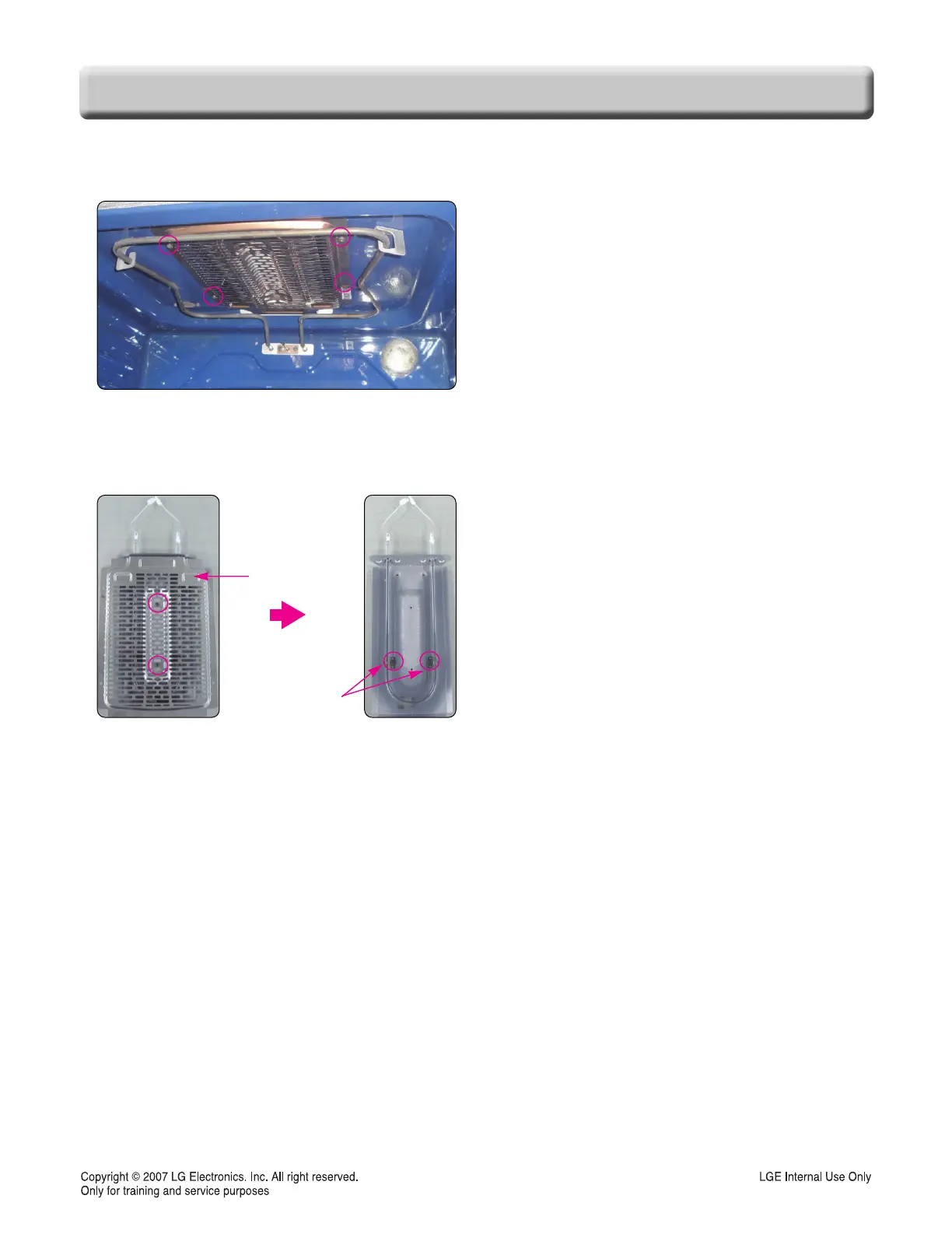

9. Remove 4 screws and detach the inner heater
assembly from range
10. Remove 2 screws and the mesh.
Remove 2 screws and the brackets.
Now charcoal heater can be detached.
NOTE: Although all charcoal assembly are not
detached, the only charcoal heater can be
replaced after removing the mesh, brackets
and wirings. However, the charcoal heater is
very fragile. I recommend that the charcoal
heater be replaced after detaching the
whole charcoal heater assembly, NOT
detaching the only charcoal heater.
Mesh
2 Brackets
To Next Page
