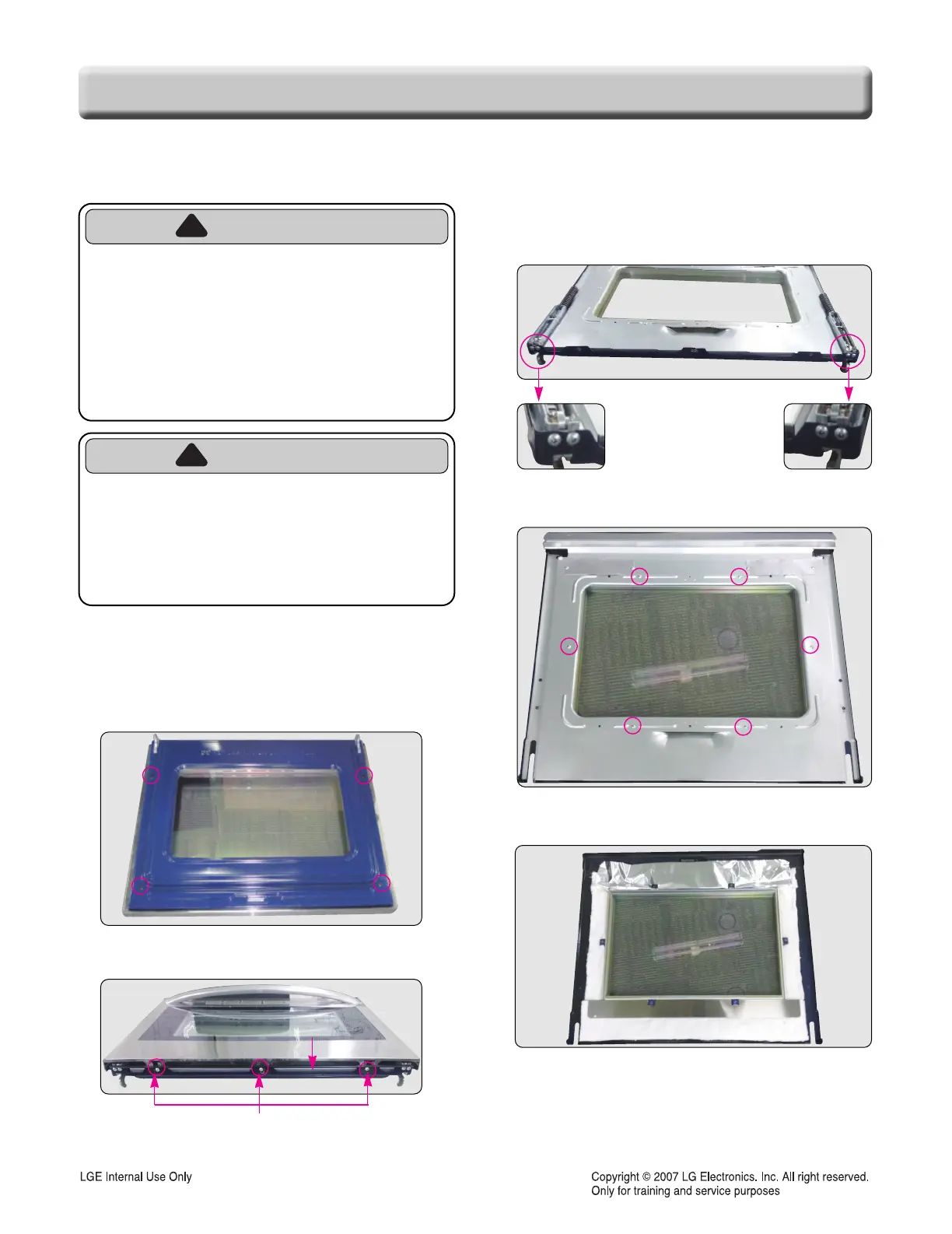

6. To remove a hinge hanger assembly:
Remove 4 screws and detach the hinge hanger
from the door frame slot.
7. To remove the door’s inner glass assembly:
a) Remove 6 screw.
b) Detach the inner cover and the inner glass
assembly can be detached.
REASEMBLY NOTE: When you reinstall the
insulation around the oven door glass, make sure
that the insulation is not visible in the glass after the
door is reassembled.
3-19
COMPONENT ACCESS
REMOVING THE OVEN DOOR’S INNER GLASS
REMOVING THE OVEN DOOR’S INNER GLASS
1. Remove the oven door from the range
(See the page 3-17 for the procedure).
2. Place the oven door on a padded work surface
with the front glass facing down.
3. Remove 4 screws.
4. Turn the door over. Remove 3 screws from the
door cover assembly and detach the bracket
5. Lift the door cover assembly out and put it down.
WARNING
• DISCONNECT power supply cord
from the outlet before servicing.
• Replace all panels and parts before
operating.
• RECONNECT all grounding devices.
- Failure to do so can result in severe personal
injury, death or electrical shock.
CAUTION
• Be careful when you work on the
electric range handling the sheet
metal part.
- Sharp edge may be present and you can cut
yourself.
3 bottom liner screws
Bracket
To Next Page
