3-9
COMPONENT ACCESS
REMOVING THE INNER BROIL ELEMENT(CHARCOAL HEA
REMOVING THE INNER BROIL ELEMENT(CHARCOAL HEA
TER)
TER)

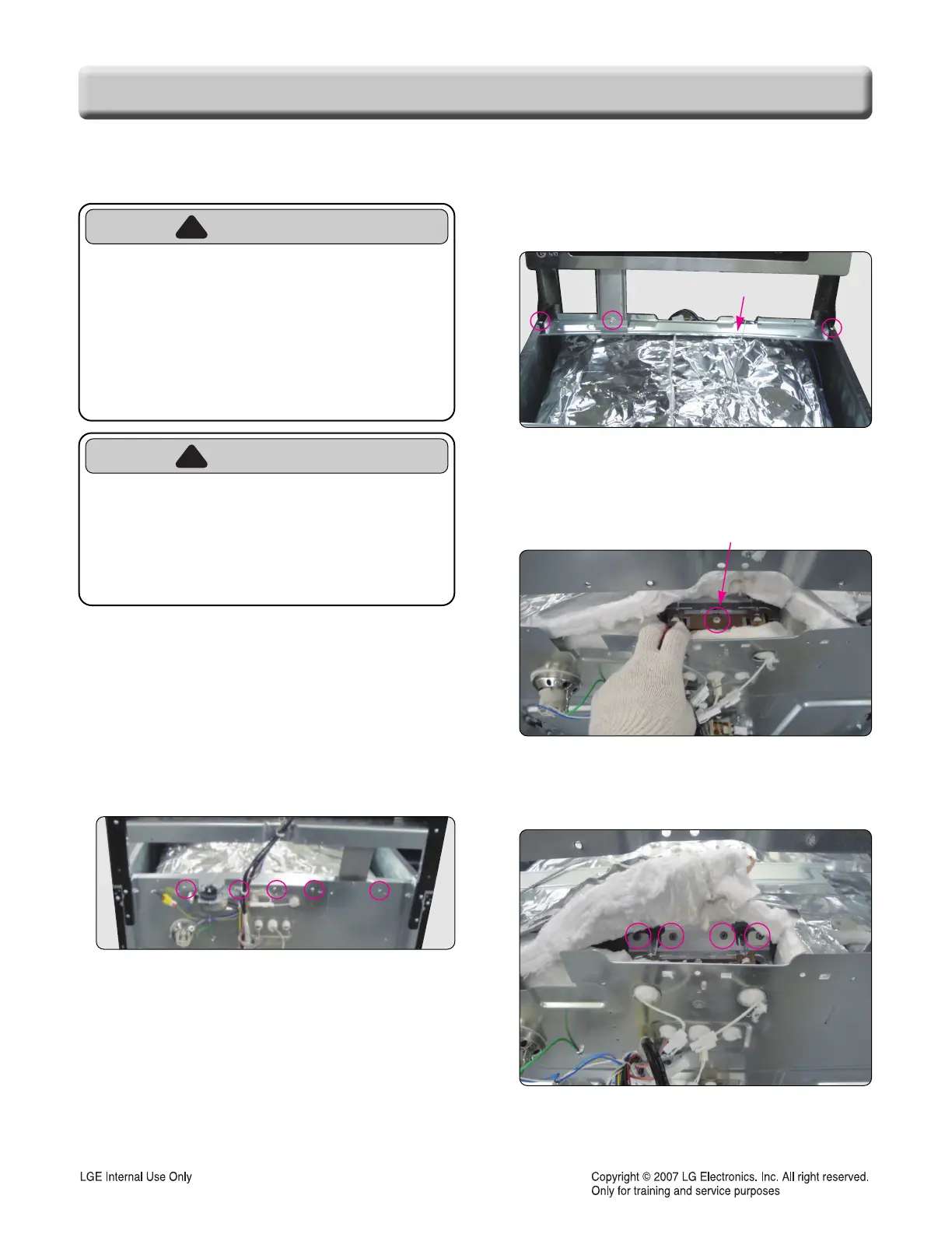

1. Turn off the electrical supply going to the range.
2. Open the oven door and remove the racks from
inside the oven.
3. Remove lamp, controller and back cover
(See the page 3-2)
4. Remove the cooktop assembly.
5. Remove the 5 screws and a lock motor from the
rear panel.
6. Remove 5 screws and detach a insulator from
range.
7. Open the ceramic wools from the cavity
assembly and remove 1 screw from a charcoal
heater bracket. Remove the charcoal heater
bracket.
8. Remove 4 screws from the bracket.
Detach the bracket and 2 conectors(charcoal
heater) from the charcoal heater assembly.
WARNING
• DISCONNECT power supply cord
from the outlet before servicing.
• Replace all panels and parts before
operating.
• RECONNECT all grounding devices.
- Failure to do so can result in severe personal
injury, death or electrical shock.
CAUTION
• Be careful when you work on the
electric range handling the sheet
metal part.
- Sharp edge may be present and you can cut
yourself.
Insulator
charcoal heater bracket
To Next Page
