LG LRE3085ST - Single Surface Unit(LR, RR)

4-5
Single surface units:
Left Rear(LR)
Right Rear(RR)
Element
1. Refer to page 3-6 for the servicing procedure
2. Set the Multiple meter scale to the R x 1
3. Disconnect wires from cook-top elements

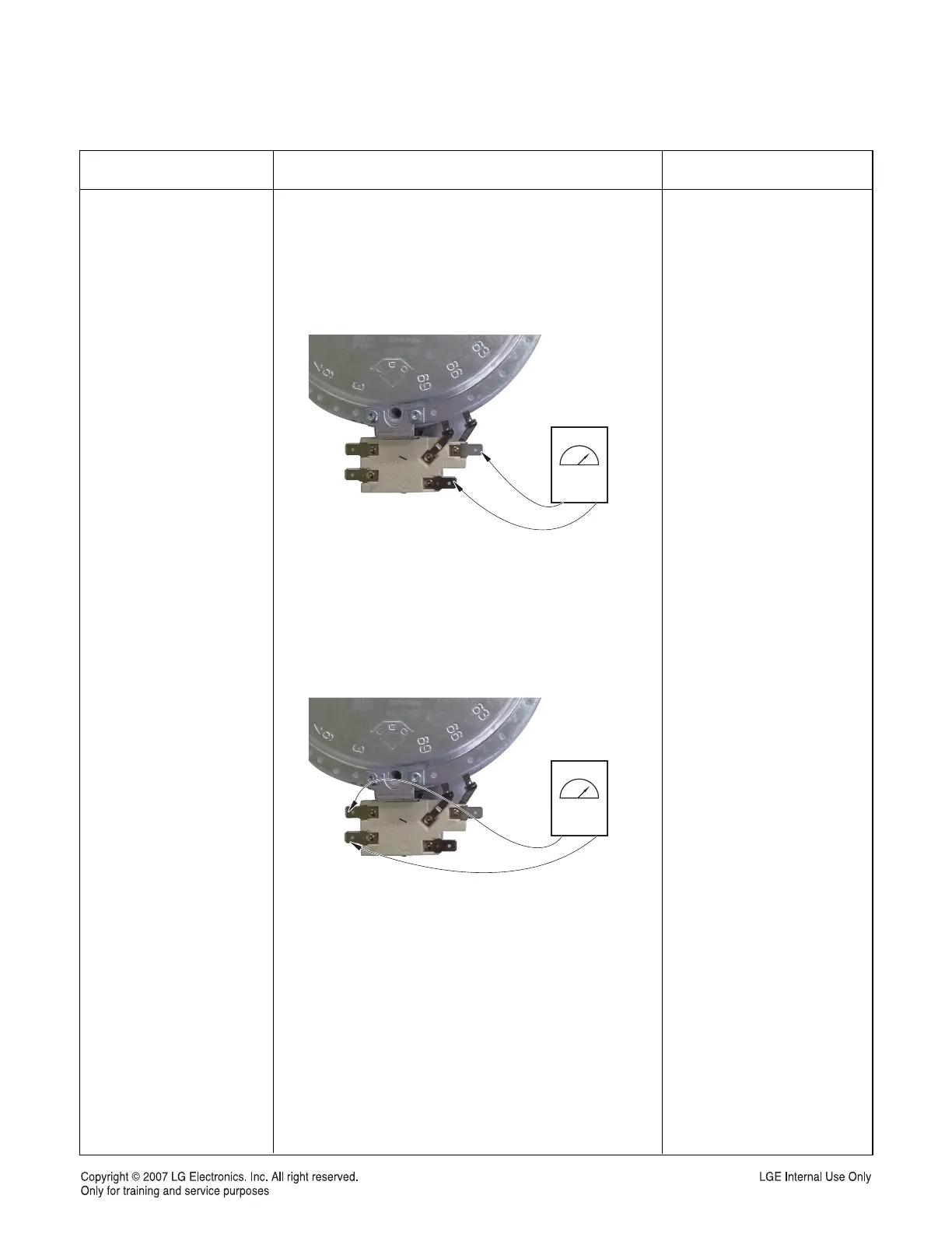

4. Touch the ohmmeter test leads to the element
terminal and 1A.
The meter should indicate 46 Ω ± 10%
5. Touch the ohmmeter test leads to limiter
terminals 1B and 2B.
With the temperature below 150˚F, the meter
should indicate an open circuit(infinite).
With the temperature above 150˚F, the meter
should indicate continuity (0Ω).
Components Test procedures Results
Normal: Approximately 46 Ω,
If not replace
Below 150˚F
󳥡 open circuit(infinite).
Above 150˚F
󳥡 continuity (0 Ω)
Element
terminal
1A
2A
1B
2B
