WARNING

POWER MUST BE DISCONNECTED BEFORE

SERVICING THE APPLIANCE. FAILURE TO DO SO

CAN RESULT IN DEATH OR ELECTRICAL SHOCK.

RADIANT COOK-TOP

Wattage Ω

RR:1200W approx.47Ω

LR:1200W approx.47Ω

RF:

1400W(Inner) approx.41Ω

1800W(Outer) approx.32Ω

WARM ZONE

:100W approx.570Ω

LF:

1400W(Inner) approx.41Ω

1800W(Outer) approx.32Ω

WIRE COLORS

< TABLE 1 >

SYMBOL COLOR

WH WHITE

BK BLACK

RD RED

YL YELLOW

PK PINK

BL BLUE

BR BROWN

GN GREEN

GY GRAY

OR ORANGE

VI VIOLET

NOTE:

Schematic diagram shows

oven door opened and

unlocked.All elements are

set to “OFF”.

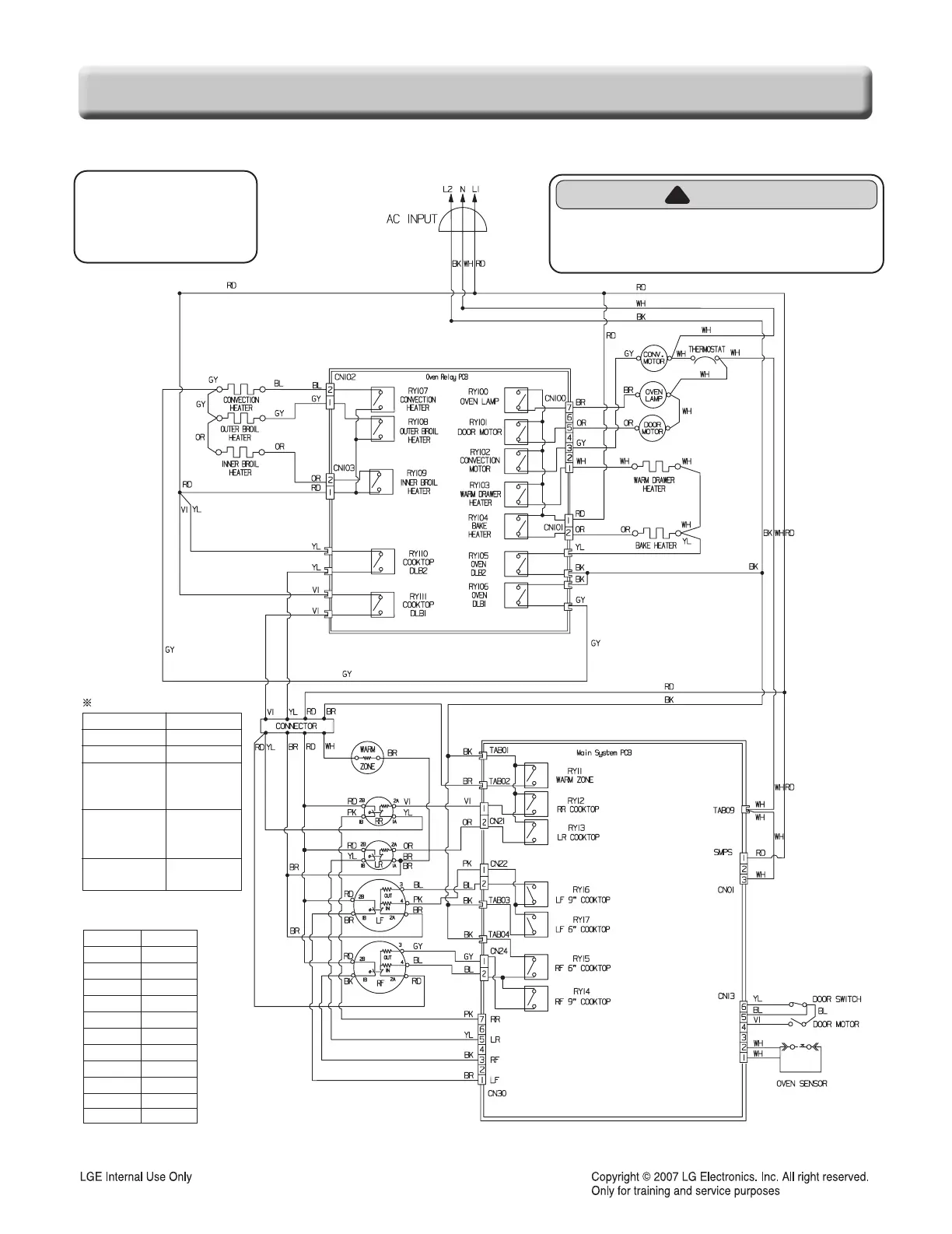

SCHEMATIC DIAGRAM

For Model : LRE3085ST /01
