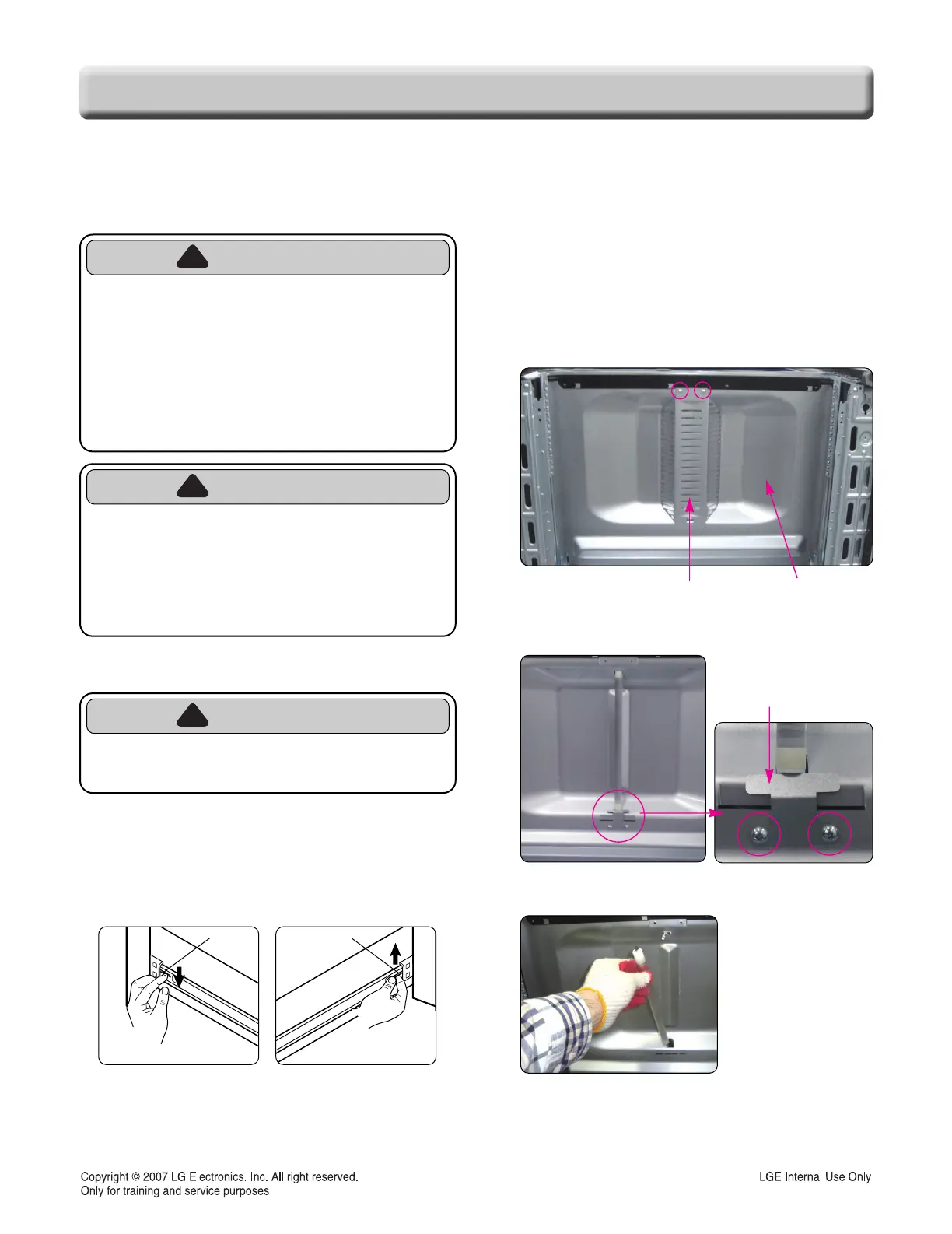

To remove the warming drawer element:
1. Turn the range on its back for servicing.
* Be careful and do it slowly in order to be not
damaged.
2. Remove 2 screws and detach the heater cover
from the insulator.
3. Remove 2 screws and detach the heater bracket
from the insulator.
4. Pull the drawer heater out of the insulator and
disconnect wirings.
NOTE:
Be careful with wirings and the wire should not fall
into a hole on the insulator. If the wire is gone out into a
hole on the insulator, you should detach the insulator from
a drawer assembly in order to take the wire out of the hole.
3-16
COMPONENT ACCESS
REMOVING THE W
REMOVING THE W
ARMING DRA
ARMING DRA
WER ELEMENT &
WER ELEMENT &
TEMPERA
TEMPERA
TURE SENSOR
TURE SENSOR
To Remove Warming Drawer:
1. Open the drawer to the fully opened position.
2. Locate glide lever on each side of drawer, push
down on the left glide lever and pull up on the
right glide lever.
3. Pull the warming drawer away from the range.
Lever
Push down with finger
Lever
Push up with finger
CAUTION
• Turn power OFF before removing
the Warming Drawer.
!
WARNING
• DISCONNECT power supply cord
from the outlet before servicing.
• Replace all panels and parts before
operating.
• RECONNECT all grounding devices.
- Failure to do so can result in severe personal
injury, death or electrical shock.
!
CAUTION
• Be careful when you work on the
electric range handling the sheet
metal part.
- Sharp edge may be present and you can cut
yourself.
!
Heater cover Insulator
Heater Bracket
