6-2
SVC TEST MODE

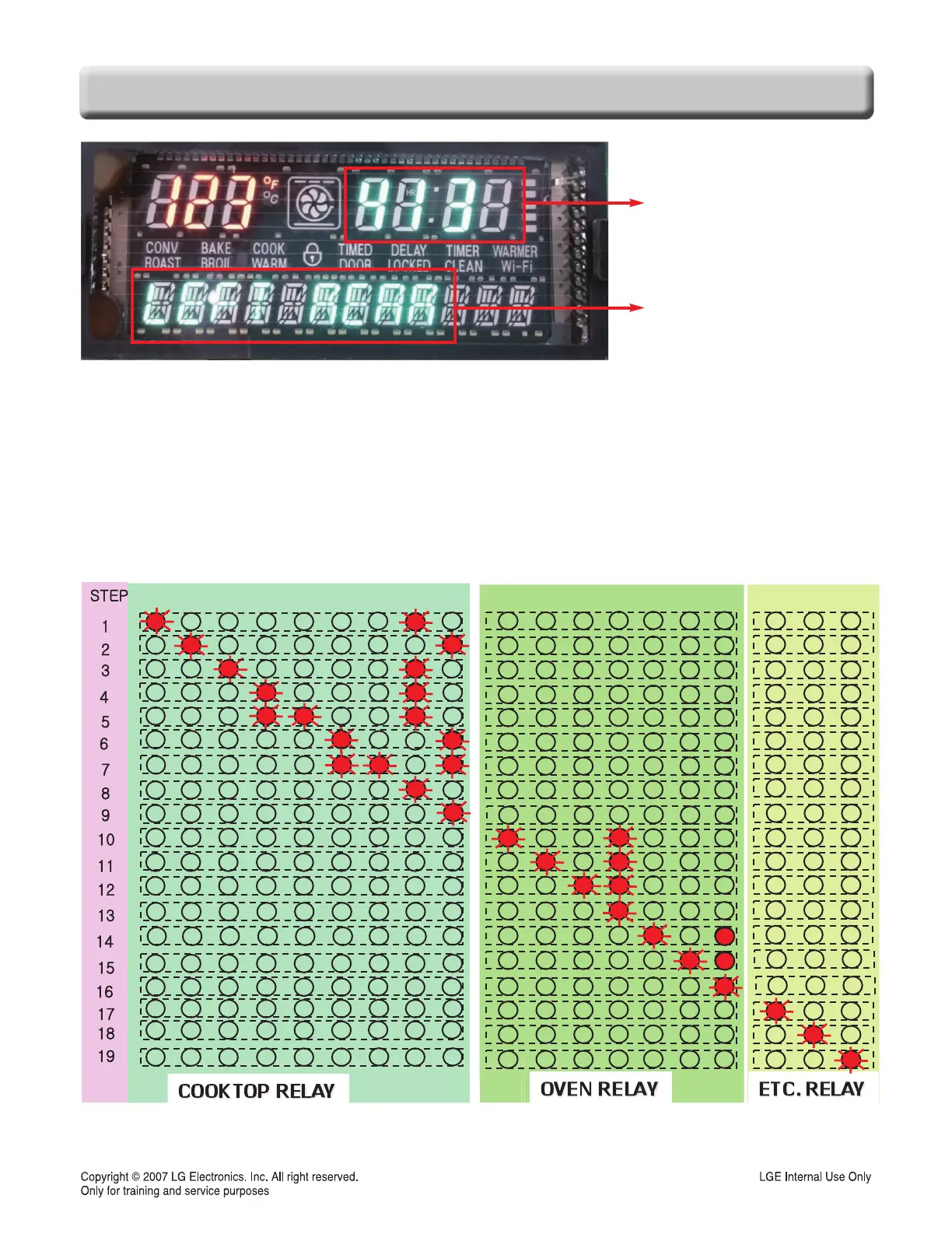

Current inspecting Relay’s information is displayed
(6) Whenever you input the “START” button, Relay is sequential operation as below
※※
Relay Operation Sequence
LR
RY13
RR
RY12
CR
RY11
LF1
RY17
LF2
RY16
RF1
RY15
RF2
RY14
DLB_L
RY110
DLB_R
RY111
BR_O
RY108
BR_In
RY109
Conv.
RY107
DLB1
RY106
Bake
RY104
Drawer
RY103
DLB2
RY105
O/L
RY100
Motor
RY101
Fan
RY102
• Relay’s Loc. No.
󳫦 Y13 : RY13
Y11 : RY11
Y12 : RY12
• Active Load name
